Anina Anina Active GPS Antenna for Kenwood DDX/DNX/KNA/DDX ALP …

Price: $12.58
(as of May 17, 2025 20:29:58 UTC – Details)

Product description

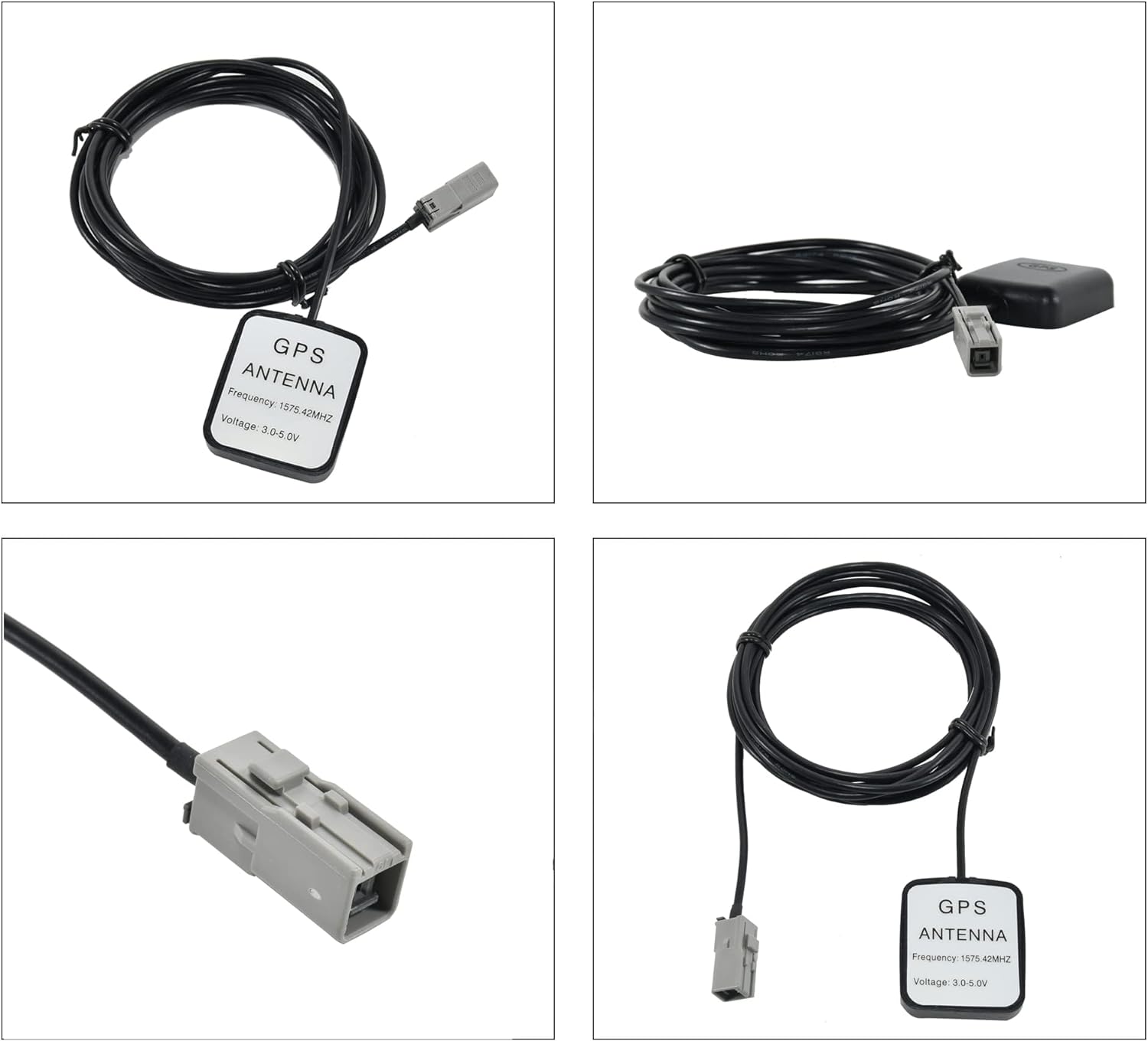

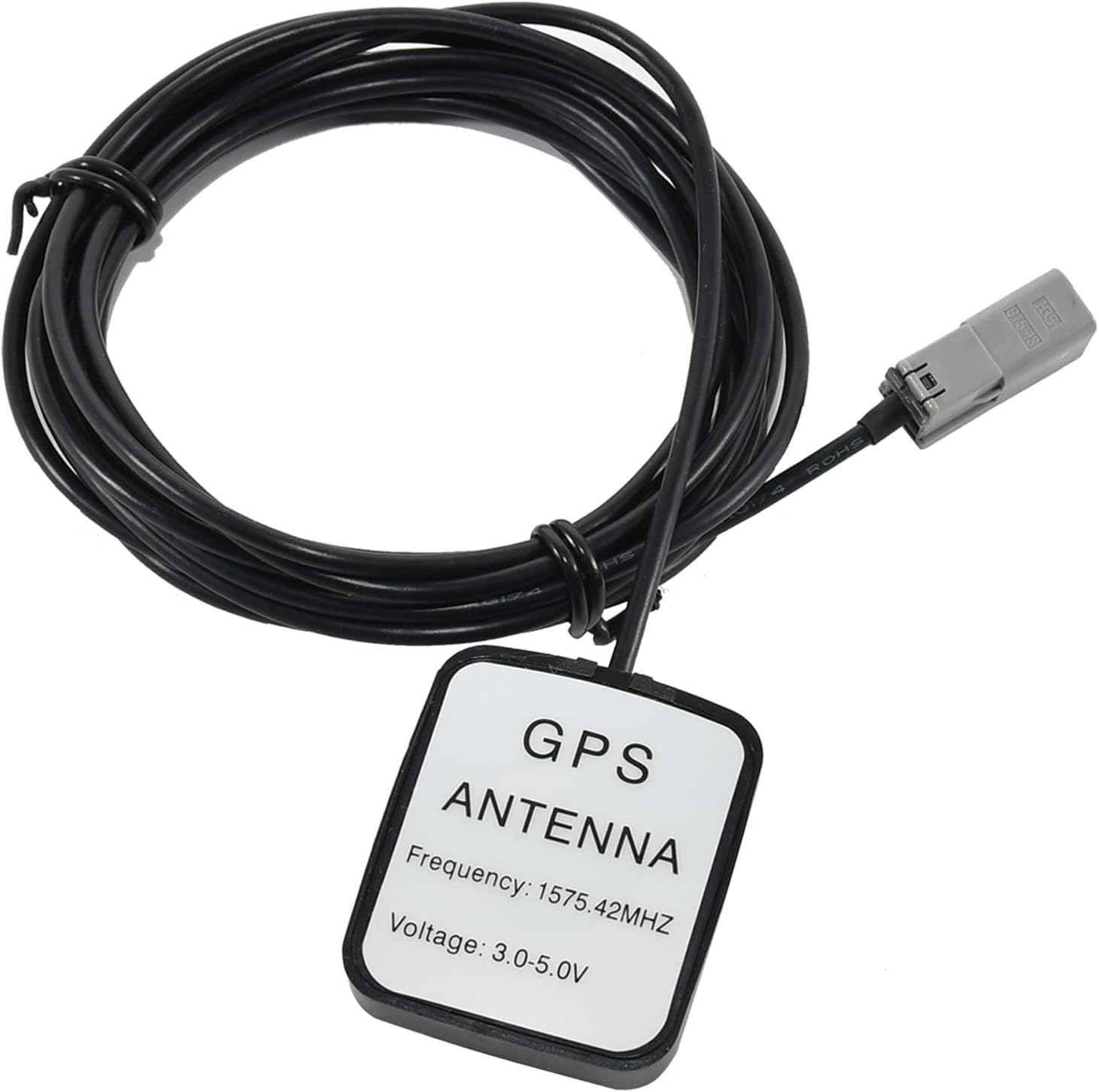

GPS car antenna

External active antenna increases the reception of the GPS signal from your car. GPS antenna connect your main accessory unit and get your location exactly.

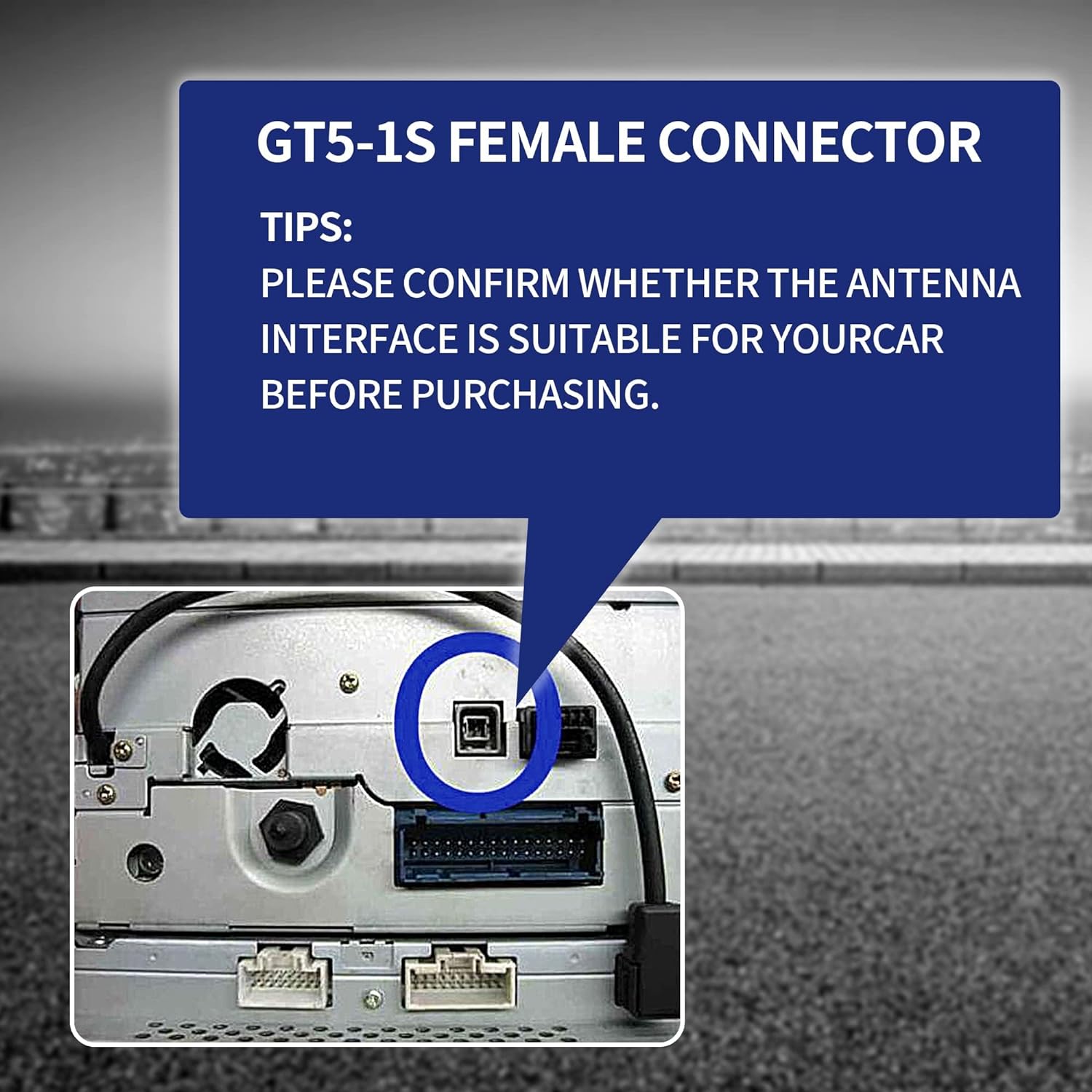

GT5-1s female connector

GPS navigation antenna with GT5-1s female connector. The base is magnetic and can be adsorbed on any metal surface. Easy to install, and you can install it anywhere you want.

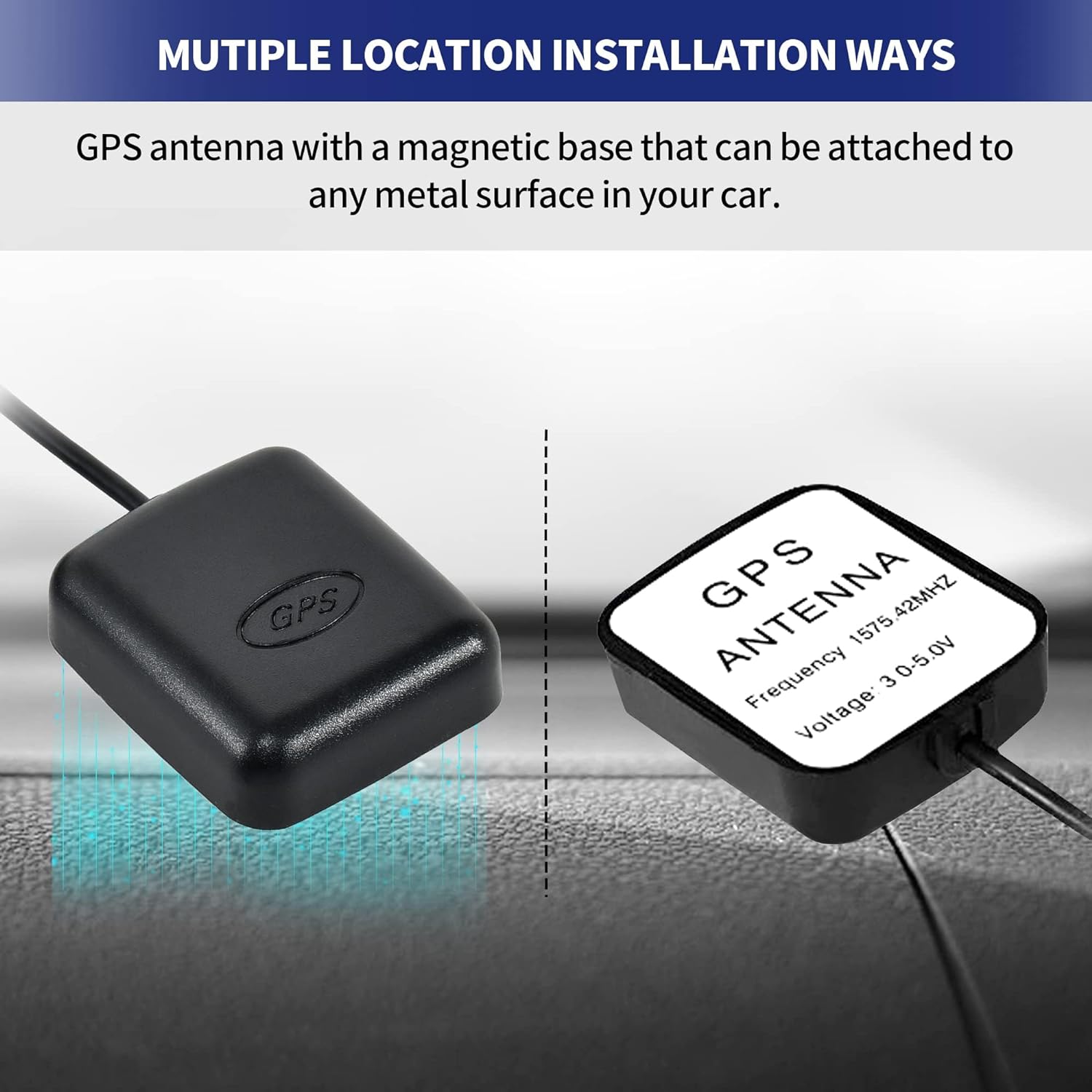

Magnetic base

The GPS antenna is made of ABS +sound quality material, with strong corrosion resistance, water resistance and high durability.

The GPS antenna works for the following models:

Alpine Navigation System (not for Alpine NVE-871A)

-Alpine NAV-200, NVE-N751A, NVE-N751AS, NVE-N851A, NVE-N852A

– Chrysler, RB1 CD DVD RDS GPS Radio Radio Unit

– Clarion Navigation Systems

– 9000 VNR Navi

– Grundig

– Magnetic

– Marelli

– Mercedes 2.0 Command: A203, A208, A210, A230, A220 820 5889 16: 9 and A463

– Xanavi

– Panasonic Navigations System

– Avic 505 pioneer navigation

– Honda navigation

– Toyota navigation

– Nissan navigation

Alpine: INE-W960HDMI, INE-W970HD, INE-W987HD, X308U, X009-GM, X009-TND, X009-FD2, X009-GM2, X209-WRA-OR

Kenwood: DNX7000EX, DNX7100, DNX710EX, DNX6140, DNX5220, DNX5220BT, DNX7220, DNX8220BT, DNX520VBT,

DNX600EX, DNX6020EX, DNX5220, DNX5220BT, DNX7220, DNX8220BT, DNX520VBT, DNX600EX, DNX6020EX,

DNX5120, DNX7120, DNX8120, DNX8120BT, DNX5160, DNX5260BT, DNX5360, DNX6160, DNX5180, DNX7180,

DNX9960, DNX7160, DNX7000EX, DNX7100, DNX710EX, DNX7200, DNX7240BT, DNX7340BT, DNX7340BTM,

DDX5022, DDX5032, DDX7032, DDX812, DNX5120, DNX7120, DNX7220, DNX7320, DNX8120

JVC: KW-NT800HDT, KW-NT700, KW-NT500HDT, KW-NT300

It is also compatible with the GPS navigation of Toyota Honda Nissan.

All applicable models are not listed. If you have any questions about the product, let us know. The antenna length can be customized.

ANINA CAR GPS Antenna

Central Frequency 1575.42MHz ± 3 MHz

VSWR ＜ 2.0

Bandwidth: ± 5 MHz

IMPENDA: 50 ohms

Polarization: RHCP

LNA gain: 28db

Noise figure: 1.5db

CC voltage: 3.0V to 5.0V

DC current: 15 ma max

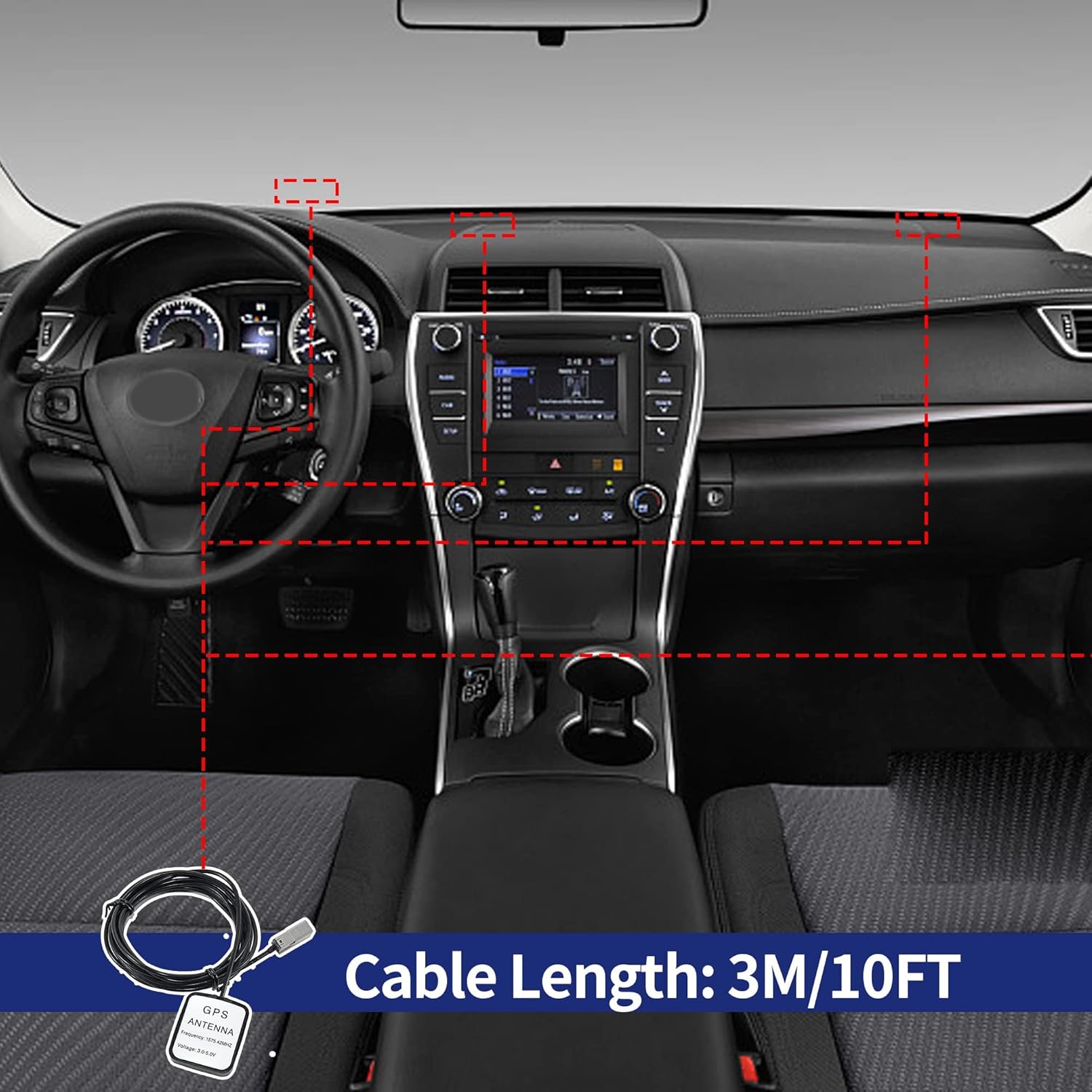

Cable length: 3m (9.8 feet）

Note that

Before delivery, we will perform product quality and signal detection to guarantee the intact function of the product. If you do not receive the signal after installation and use, it excludes the following situations:

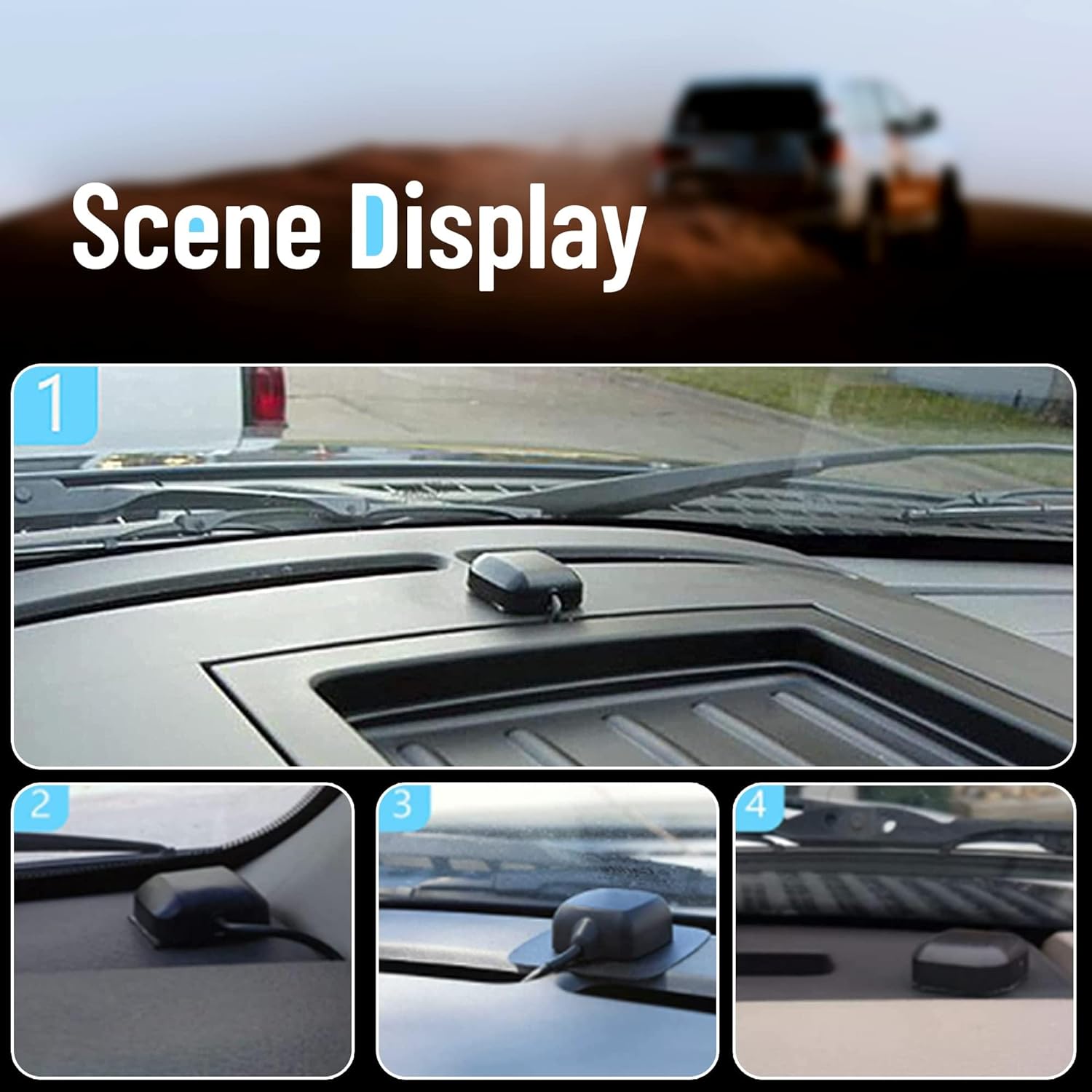

Check if the GPS antenna interface is connected and if the connector is loose. Please verify that the front of the GPS (black plastic housing) is up and up and to the sky, and the back is looking down (with the face of the source). Check the sources of interference, such as metal -proof metal cinema, such as metalproof cinema with explosion cinema, metal items, other metal items, videos, feeding classes of the installed electronic cles installed, the installed electronic instruments of explosion. Proof positions, such as Pilar A, the lower right corner of the front windshield, the roof and the mirror of the upper right vision. It is better to try in an open area.

If you have any questions during installation or use, let us know immediately and we will be happy to answer.

Compatible with: Kenwood DNX6160, DNX6180, DNX6960, DNX6980, DNX7000EX, DNX7020EX, DNX7120, DNX7140, DNX7160, DNX7180, DNX8120, DNX5220, KNAG510, DNX7140, DNX6140, DNX6040EX, DNX6020EX, DNX6000EX, DNX5180, KNAG610, DNX5160, DNX5140, DNX512EX, DNX5120, DDX812, DDX712, DNX7220, DNX7320, KNAG431, DNX914, DNX914 DNX9140 DNX9960, DNX9980HD, DDX8706S, DNX 6960, DDX9906XR, DNX696S, DDX9703S, DNX574S
Compatible with Alpine NAV-200, NVE-N751A, NVE-N751AS, NVE-N851A, NVE-N852A, INE-NAV30, INE-NAV38, INE-S920HD, INA-W910BT, INAW910BT, INAW900BT, INA-W900BT, INAW900, INAW900, INAW900, INAW900, INAW900, INAW900, INAW900, INAW900, INAW900, INAW900 NVN-87222, NVE-N872A, INE-S920HD, INE-W927HD, INE-Z928HD
Compatible with JVC KW-NT800HDT, KW-NT700, KW-NT500HDT, KW-NT300, KW-M730BT, KW-M845BW KW-M855BW, KW-V820BT, KW-V830BT, KW-V940BW, KW-V950BW, KW-M730BT, KWMBT M730BT, KW-NT810HDT, KW-NT510HDT, KW-NT310; CLARION NX700, NX600, NX509, NX409
Compatible with: Toyota Tundra, Tacoma, Camry, Rav4, Corolla, Yaris, Prius, Matrix, 4runner, Avalon, Hybrid, Venza, Highlander, PRIus, Honda Civic, Accord, Nissan Rogue Titan; Including, among others, the previous models
Waterproof Active GPS antenna with GT5-1S female connector; GPS antenna with a magnetic base that can join any metal surface in your car; Easy to install, the horizontal installation of the GPS antenna works best, plug and reproduction
