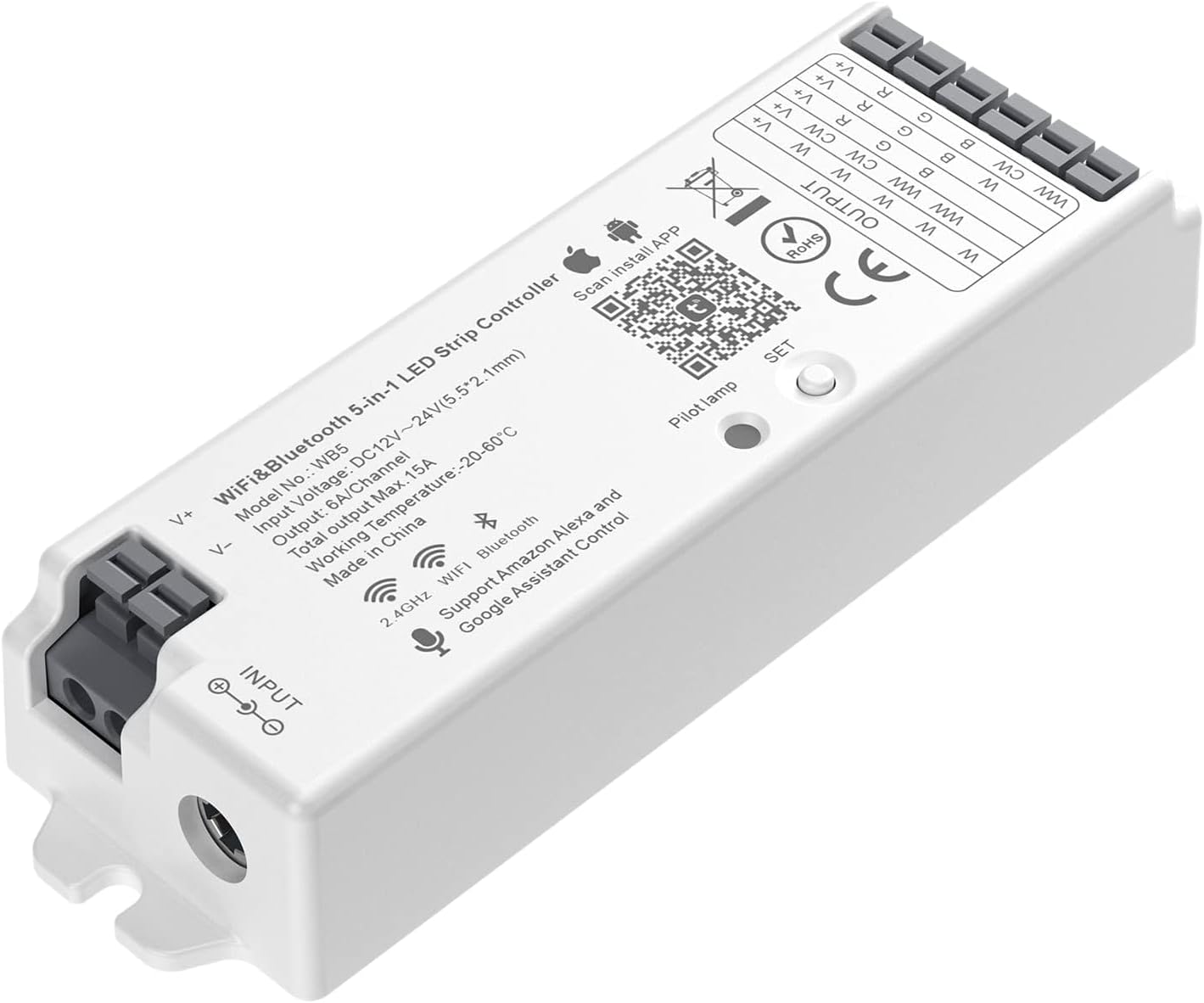

BTF-LIGHTING 5 in 1 WB5 2.4GHz Tuya WiFi PWM LED Controller Co…

Description

Price: $26.99
(as of Jun 28, 2024 16:37:27 UTC – Details)

Product description

Parameter table

Spanish Brand BTF-LIGHTING Model WB5 Product name Tuya 5 in 1 WiFi LED Controller Input voltage DC12V-DC24V The voltage of the controller depends on the LED strip Power 6A/Channel Total output max. 15A. DC12V 180W max DC24V 360W max Wi-Fi 2.4GHz Wi-Fi Waterproof level IP30 Not waterproof Operating temperature -4℉~140℉（-20℃~+60℃ ） Ways of operation Smart Life/Tuya Smart APP or Match with remote control RF Supported LED Types PWM FCOB COB 3014 5630 3528 2835 5050 Single Color, CCT, RGB, RGBW, RGBCCT LED Strip Light Control Distance 30m (98.42ft) RF Remote Control Compatible RC01RFB; RC02RFB; RC03RFB;RC04RFB; RF panel remote control compatible with RFC05RFB WR01RF; WR02RF

1 Monochromatic LED Strip 2 CCT LED Strip 3 RGB LED Strip 4 RGBW LED Strip 5 RGBCCT LED Strip Difference between PWM strips (without IC) and SPI strips (with IC)

1 Multiple control method 2 Telephone remote control 3 Compatible RF remote control 4 Group control 5 System wiring diagram

Enjoy the technical family to be a super technical expert

Product Dimensions: 4.92 x 1.38 x 1.1 inches; 2.47 ounces
Item model number: WB5
First availability date ‏: ‎ October 16, 2020
Manufacturer: BTF-LIGHTING Technology Co., Limited
ASIN: B08L9GWJK1
Country of origin: China

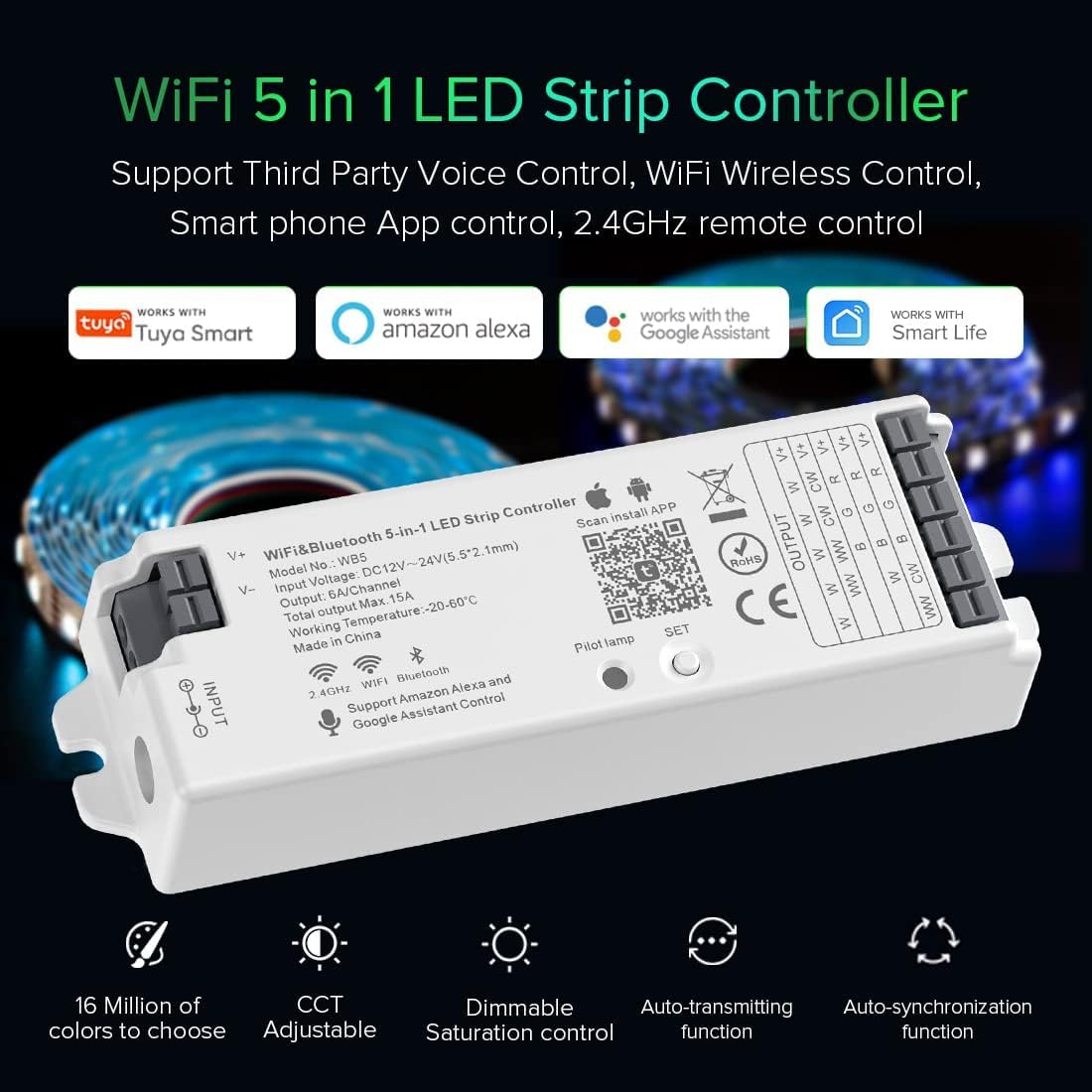

【Tuya 5 in 1 WiFi PWM Controller】WB5 = C01W+C02W+C03W+C04W+C05W. C01W=Single Color, C02W=CCT(Dual White), C03W=RGB, C04W=RGBW, C05W=RGB+CCT. This controller supports PWM, CCT, RGB, RGBW, RGB+CCT, WW+CW monochrome LED strips. Change the mode by a setting button.
【PWM LED Type】The operating voltage range is DC12V-24V. Without PWM LED IC chip. 2 single color cables, 3 CCT cables, 4 RGB cables, 5 RGBW cables, 6 RGBCCT cables FCOB 5050 3528 5630 5730 3014, etc. LED string strip bulb lamp. Power: 6 A/channel Max. total output 15A. DC12V 180W max. DC 24V 360W Max

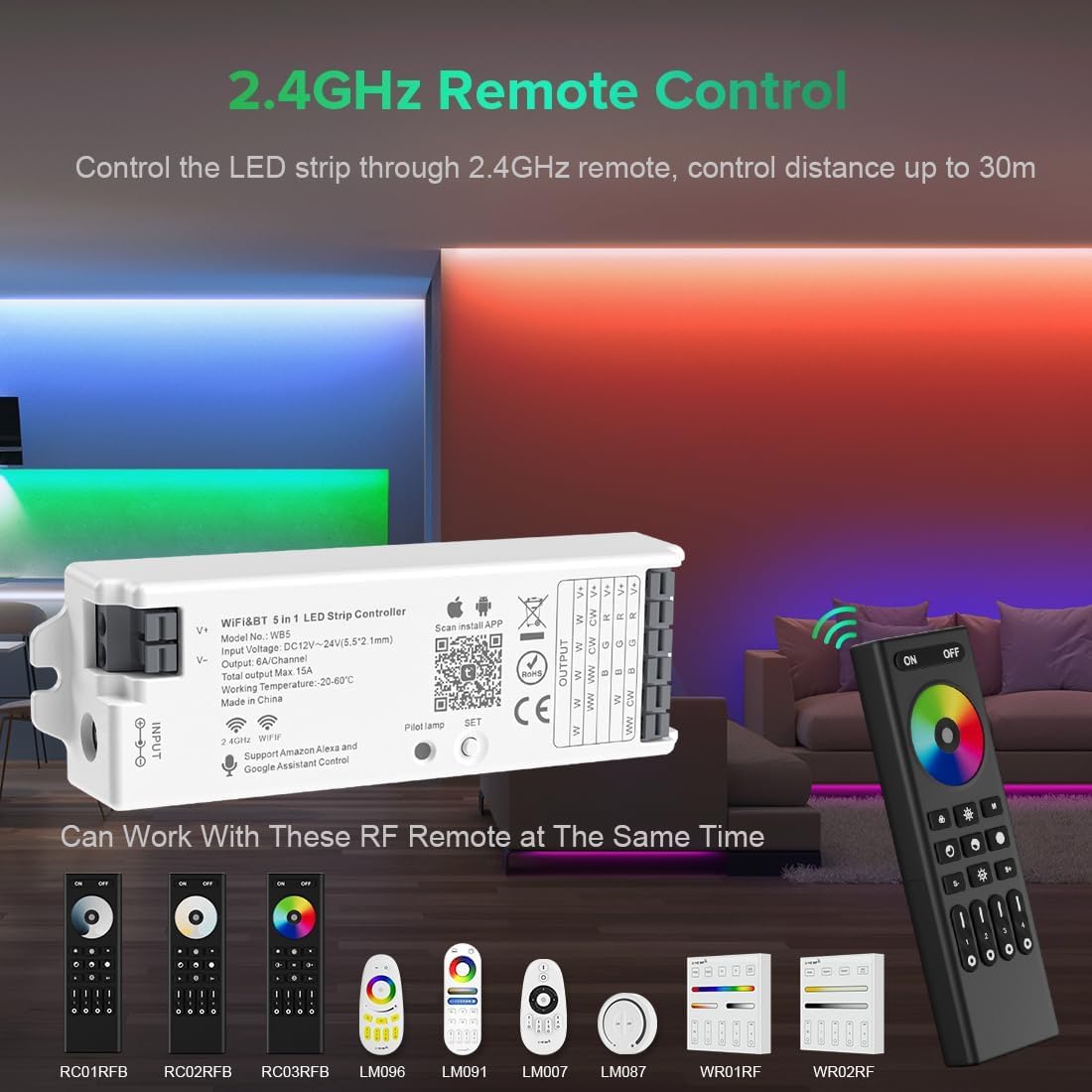

【3 Control Methods】 1st: Compatible 2.4GHz RF Remote Controller: WR01RF,WR02RF,RC01RFB,RC02RFB,RC03RFB,RC04RFB,RC05RFB. 2nd: Tuya Smart, Smart Life application 2.4 GHz Wi-Fi control. 3rd: Alexa, Google Home Assistant control. Three methods can be used at the same time.

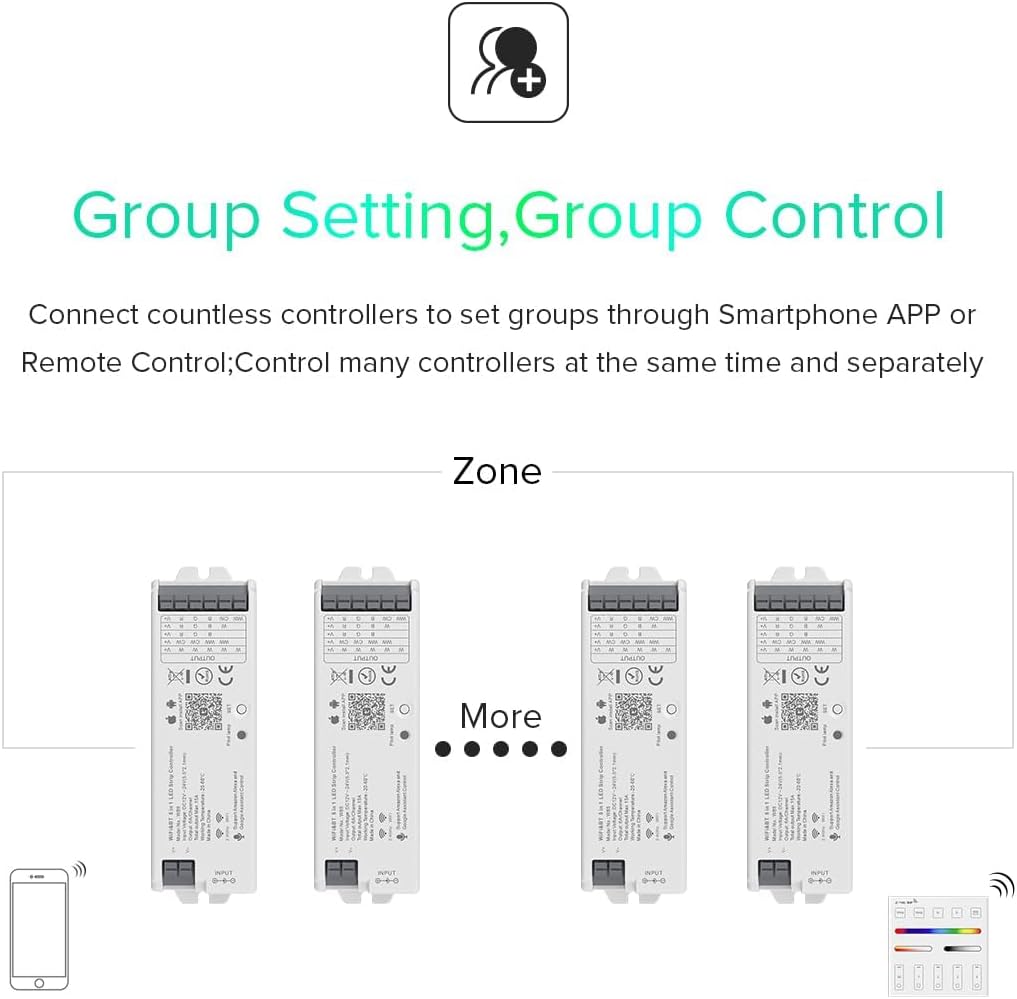

【Multifunction】16 million RGB colors. Dual white. Dimmable brightness/saturation. Group control. Multi-zone control. Voice command. Timer setting. Countdown on/off. Biorhythm. Tap-to-Run and automation. Scene customization. Sleep/wake plan. Do not disturb mode. Device sharing. Different usage scenario selection.

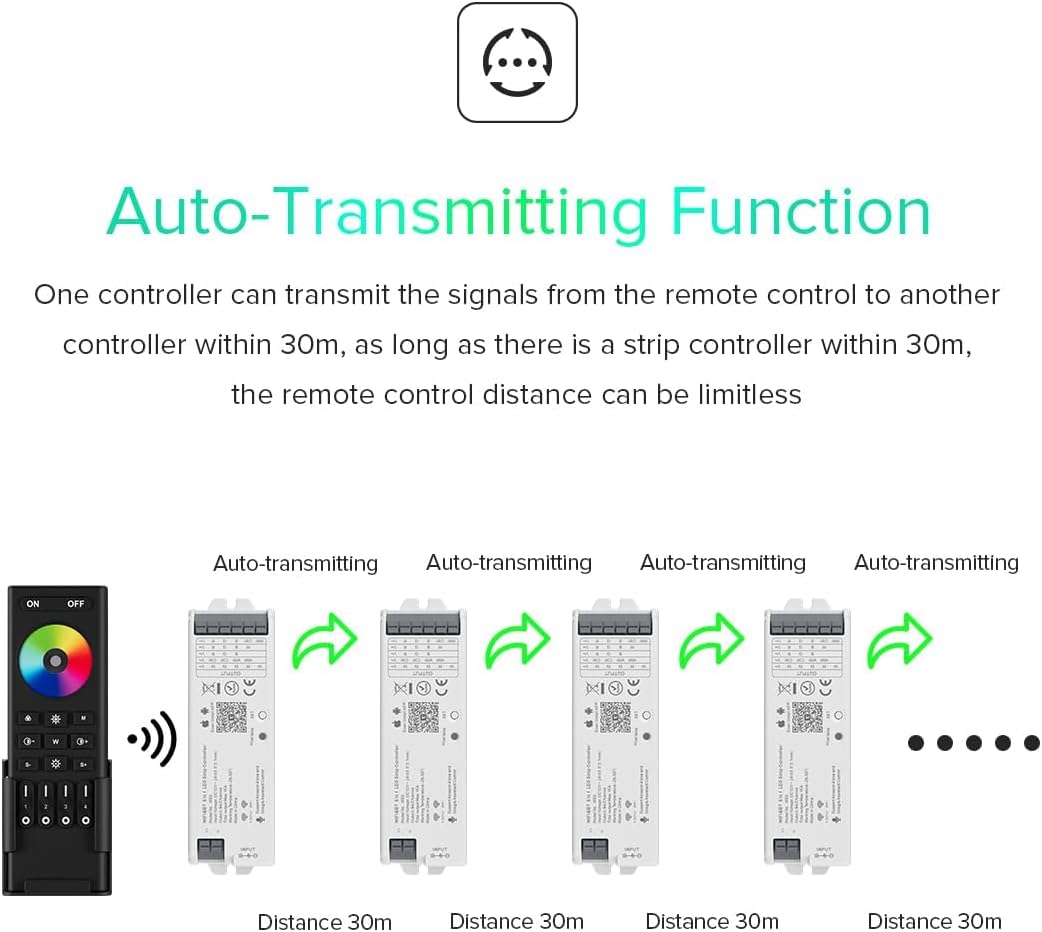

【Automatic Transmission Function】Only for remote control dimming. One controller can transmit the signal from the remote control to the other controller within a radius of 30 meters. As long as there is an LED strip controller within 30 meters, the remote control distance can be unlimited. All controllers must be the same group.
【Automatic Sync Function】Different controllers can work synchronously when started at different times, controlled by the same remote control in the same dynamic mode and with the same speed.
