EG STARTS 2 Player Arcade Game DIY Kits Ellipse Oval Happ Ty…

Price: $44.99
(as of Dec 30, 2024 16:03:36 UTC – Details)

Product Description

EG STARTS Arcade Joystick for 2 Players DIY Parts 2 USB Encoders + 2 Elliptical Joysticks + 18 American Style Arcade Buttons for PC, MAME, Raspberry Pi, Windows

Compatible model Win8/Win7/Vista/XP/2000/98, Linux, MAC OS, Android. Raspberry Pi 1/2/3/3B Retropie Arcade DIY projects, MAME DIY projects, MAME USB cabinet DIY projects and PC controller computer games, etc.

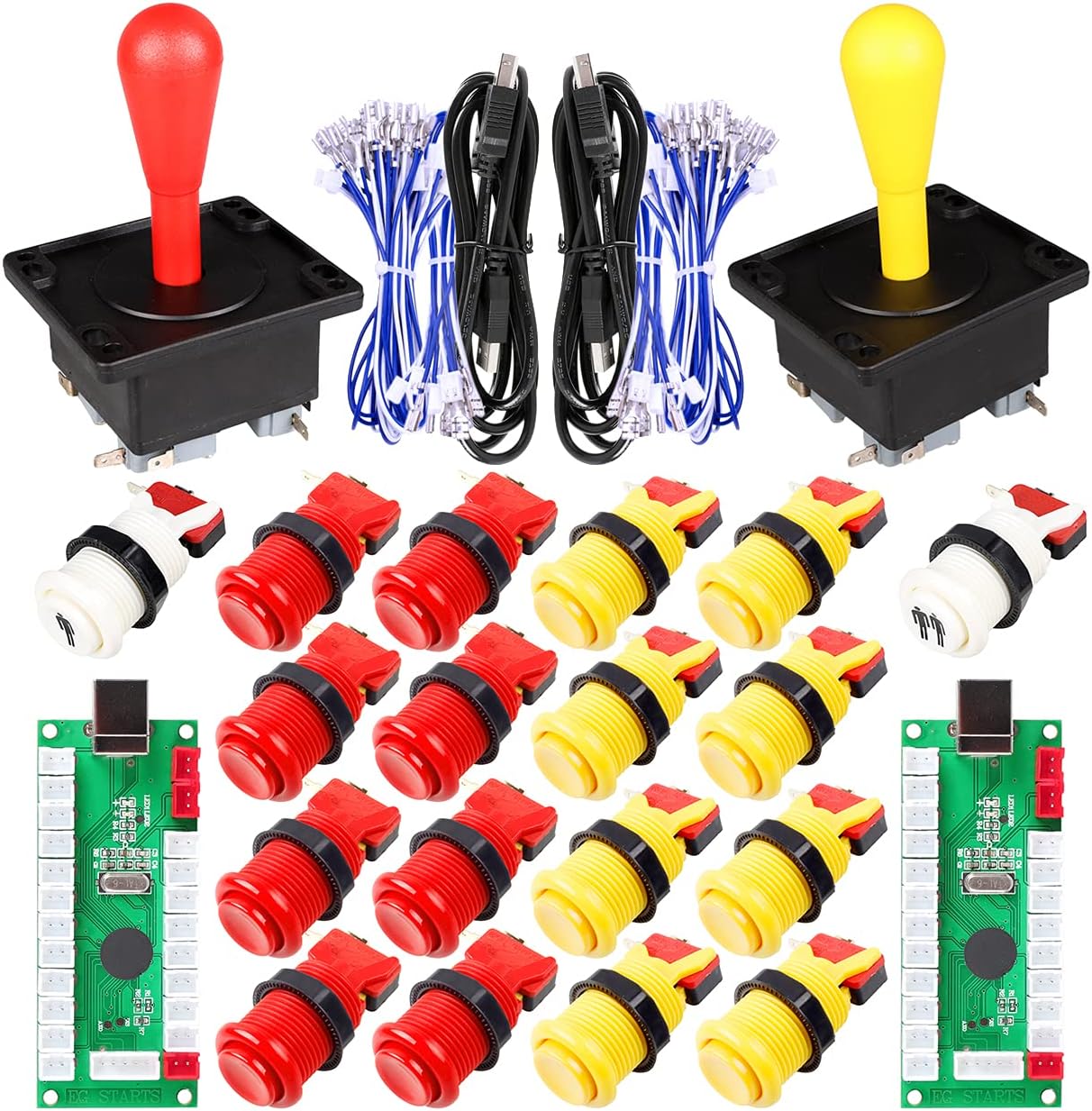

Package Included

2 x Zero Delay USB LED Encoders

2 USB cables.

2x 5-pin cables for joystick

20x 2-pin cables for pushbuttons

1 x 28mm ring attachment push button for 1 player as start buttons

1x 28mm ring attachment push buttons for 2 players as start buttons

16x 28mm ring fixing pushers as fighting buttons

2x 5-pin 8-way ellipse type joystick

1x instructions

Installation Tips

1. Please read our user manual before starting your DIY actions.

2. It is very important! Connect the 5-pin joystick cable to the 5-pin slot in front of the USB-B terminal. Many people connect the joystick to the wrong 5-pin slot.

3. There is no need to separate the button functions when you connect the cable to the buttons and encoder board, unless you want to add “Auto-Fire”, “Tubro”, “Clear” and “Mode” functions. All fight button functions can be set to MAME or RetroPie. The “Auto-Fire”, “Tubro”, “Clear” and “Mode” functions have their own slot on the encoder board.

4. For professional players. We suggest you change all buttons and joysticks to SANWA brand or SEIMITSU brand.

Tips for new users:

1. The item needs to work with MAME emulator. So before creating your own project, download one to work with the parts.

2. If you use this kit to create your own Raspberry Pi Retropie projects. Find the steps before your DIY.

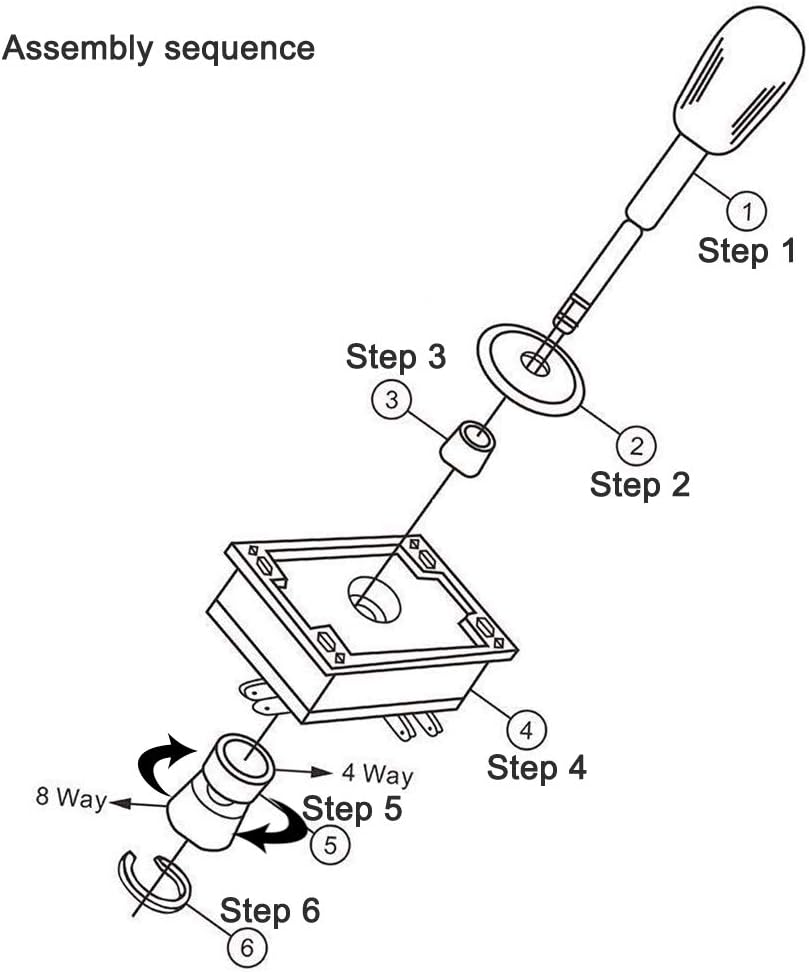

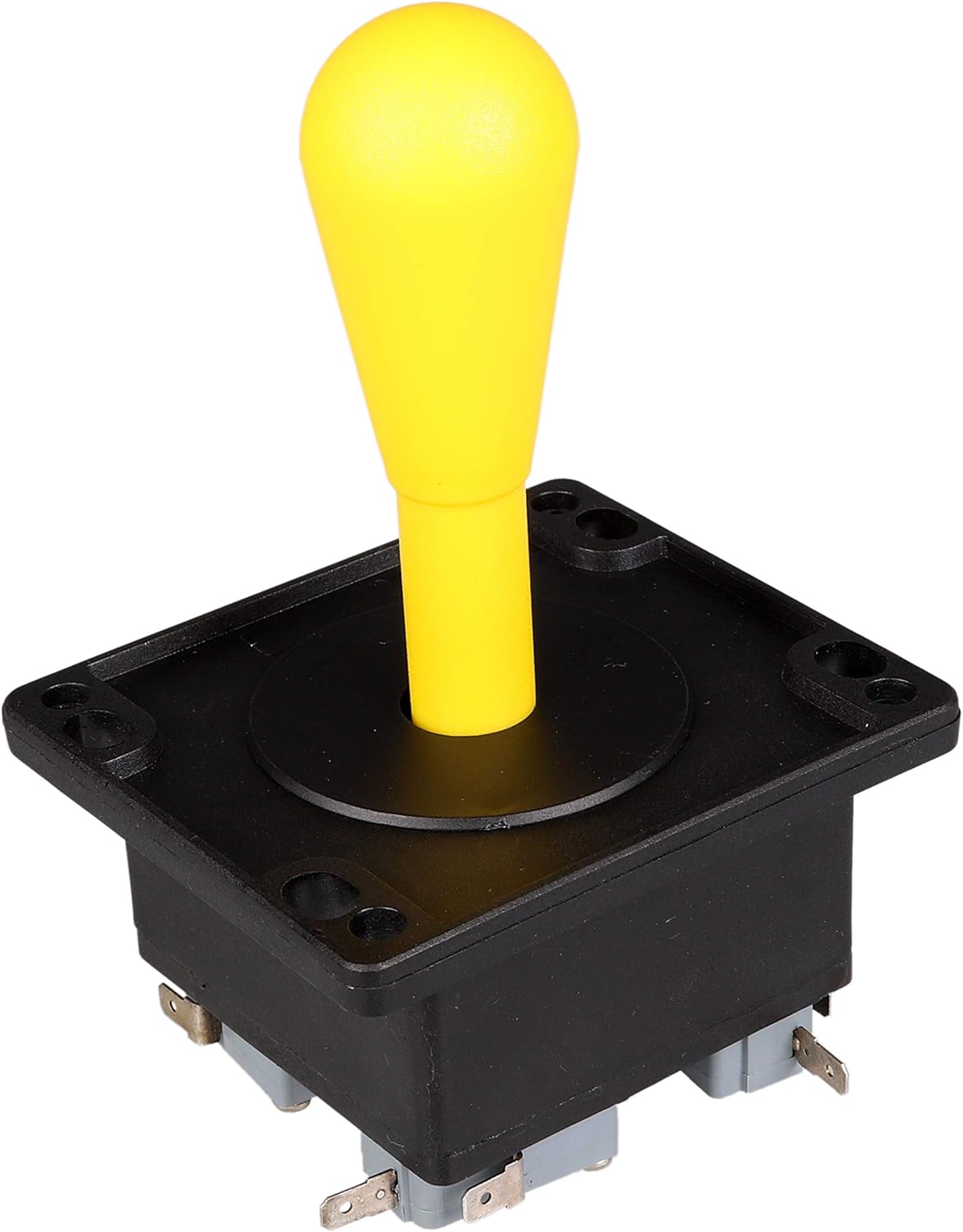

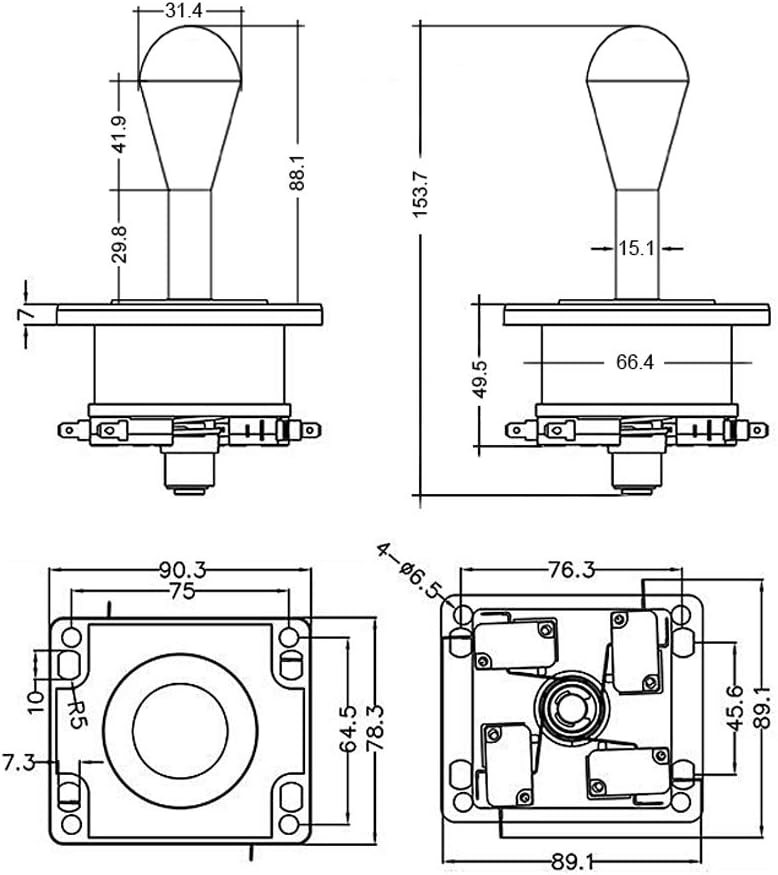

Ellipse joystick

You can replace the different balls. It is a high quality 2-pin 8-way joystick model. The service life reaches 1 million clicks. New interface mode. Reject the wrong interface.

Applicable to wooden shell and iron shell machine, the return of flexibility, more wear-resistant; Parallel cone with iron base; square door

All silver driving point, touch sensitive; inside the iron bar for the stainless steel; 2.0 electrolytic plate thickness; powder washers; Detachable ball, can replace different ball;

American type buttons

This Happ Type Ultimate arcade button is ideal for arcade machine and JAMMA machine projects. This is a standard 30mm button that fits into a 28mm mounting hole. It has a concave plunger and includes a fixing ring and a microswitch.

Mounts to wood or metal control panelsIdeal for use inside 3/4″ wood control panelsMicroswitch reliability tested to 10,000,000 cyclesVertical connection microswitch with 0.187″ (4.8mm) terminal

Classis concave plunger design, mounts in a 28mm hole. Each button includes a 2-pin microswitch with button body locking ring. Make sure the hole diameter is the correct 28 mm (1.104 inches).

USB drivers

Zero Delay Arcade USB Encoder for your DIY PC game! Perfect fit for 5 pin joystick with Sanwa type joystick. All types of buttons with Happ type 4.8 mm terminal! Use this encoder to build your own Arcade game machine! Plug and Play, no drivers required. All Windows systems! Like Windows XP, Windows 7, Windows 8, etc. It can also support most Arcade emulations, such as MAME, JAMMA and other PC game console emulation.

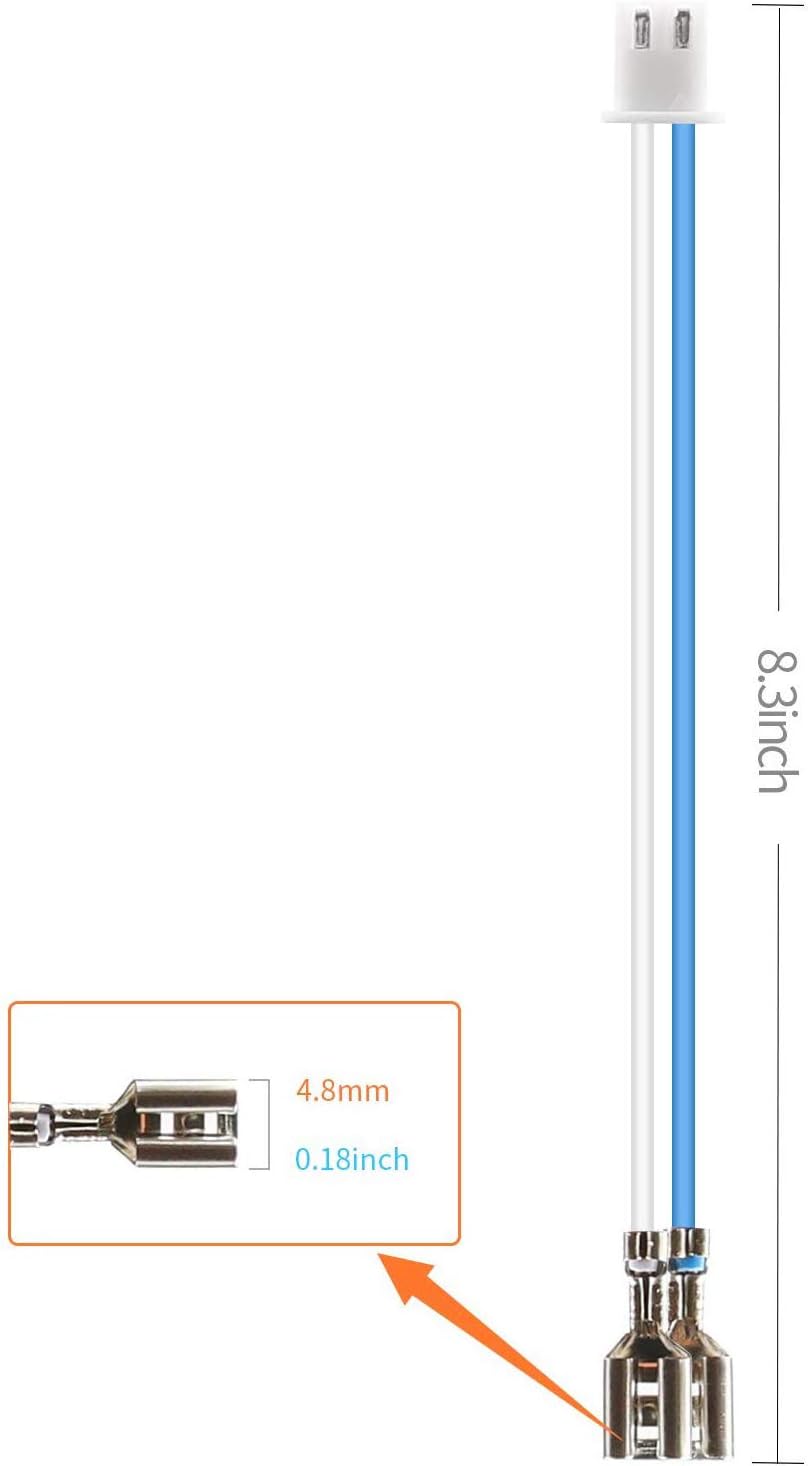

These 20cm longer 2pin button cables adopt 0.187″ straight terminal. They are used for Happ buttons. Microswitch buttons and LED lights push buttons, etc. Each blue and white line can only access the interface of a button. If the joystick needs to be replaced. Do not break the Blue and White Cable. Use a tool to hold the 4.8mm terminal and remove the port. It is also a very compact encoder. Encoder is only 8.5cm x 3.5cm x 1cm.

USB Printing Terminals K1-K12 Push Button Terminals 5 Pin Joystick Terminals 2 Pin Joystick Terminals Auto, Turbo, Clecet, Mode Terminals6 and 6-1 are 5V power terminals

<1> High performance COMS technology. <2> Function key compatible with TURBO and AUTO mode with LED flashing. <3> The rocker IC supports multiple forms of gaming equipment. And in two types of equipment. Digital mode, analog mode can switch arbitrarily.

New update of beautiful Arace LED game DIY parts for MAME and Raspberry Pi retro gaming DIY project!
Each kit includes 2 Zero Delay USB Encoders + 18 American Style Arcade Buttons + 2 Ellipse Oval Arcade Joysticks
Made with the highest quality materials! Heat resistant plastic! Eco-friendly metal!
Super easy installation design! Simply plug the wires into the slots or connect the terminals!
Perfect DIY parts for 2 player arcade game DIY projects!
