Makerfocus GT-U7 GPS Module Satellite navigation positioning …

Price: $12.99
(as of Mar 24, 2025 19:01:01 UTC – Details)

Description:
The GPS module of the Main Module GT-U7 use of the original generation seventh chip, the software is compatible with neo-6M. With a USB interface, you can use the phone data cable directly in the computer's point of view position. USB connected directly to the computer, that is, with the serial port function owned by the Host computer, an external serial module is not necessary, send an active IPX interface antenna!

Characteristics:
GT-U7 module, with high sensitivity, low energy consumption.
Miniaturization, its extremely high monitoring sensitivity largely expanded its coverage positioning.
In the ordinary GPS receiver module, it cannot locate the place, such as the narrow urban sky, the dense environment of the jungle, GT-U7 can be high precision positioning.
Module with high sensitivity, small static derivation, low power and light volume.

Specification:
With the IPEX antenna interface, the default distribution of the active antenna can be placed quickly
Operating voltage: 3.6V-5V (or direct USB power supply)
BAUDOS OPERATING RATE: 9600 (can be modified)
On board E2Prom can save parameter data
Nema's output format is compatible with neo-6m

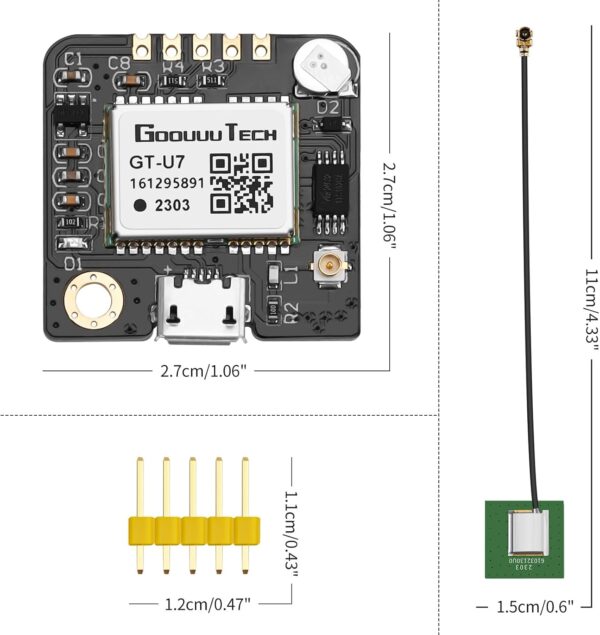

Size: 27.6 mm * 26.6 mm can be inserted or select patch (with positioning holes)

APPLICATION AREAS:
Mounted in the vehicle
Portable devices like PDA
Vehicle monitoring
Mobile phones, camcorder and other mobile positioning systems sharing bicycle
Share mobile energy

Packing list:

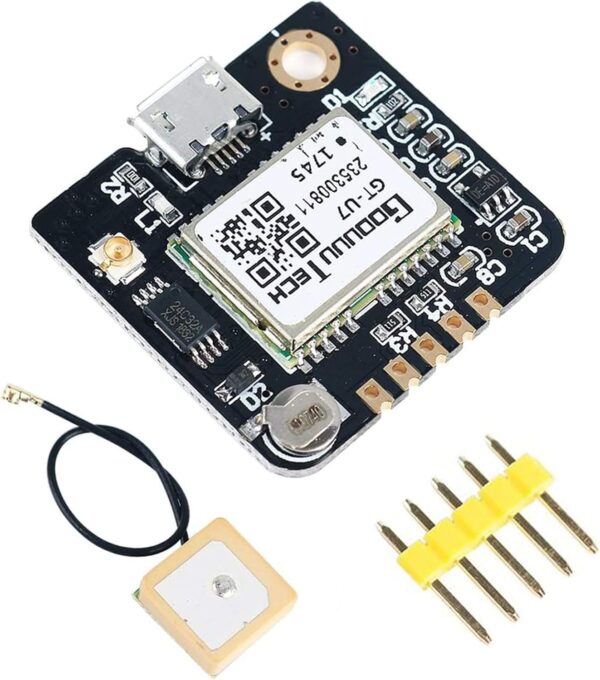

1 * GPS Module GT-U7
1 * IPX antenna
How to use the GPS module better, the link is obtained in the guides and documents of the product, download before using it

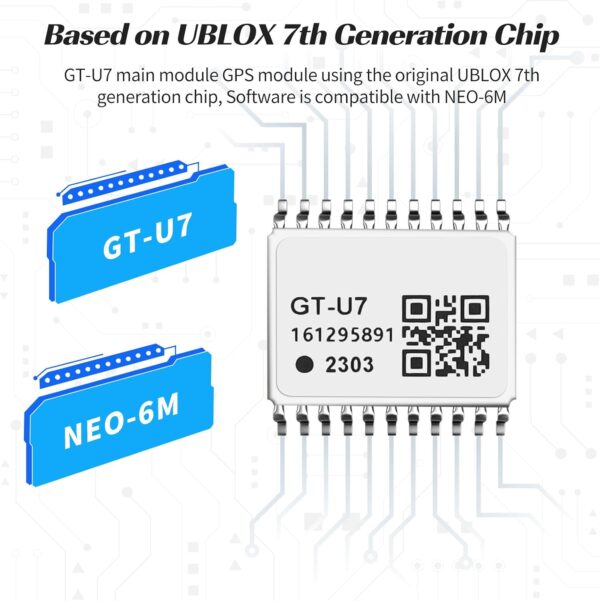

The GPS Module Module GT-U7 using the original 7th generation UBLOX chip, the software is compatible with neo-6m. Module GT-U7, with high sensitivity, low energy consumption, miniaturization, its extremely high monitoring sensitivity largely expanded its coverage positioning
GPS BAUD must be established in 9600 instead of 4800; PPP Pin is not needed unless you use GPS to drive a high hardware precision clock
With a USB interface, you can directly use the phone data cable in the computer's point of view position; With the IPEX antenna interface, the default distribution of the active antenna can be placed quickly
USB connected directly to the computer, that is, with the serial port function owned by the Host computer, without the need for an external serial module, send an active IPX interface antenna
Note: Use the GPS GT-U7 module in an open place, the LED will flash after finding the satellite signal. Bad weather and interior use will affect the accuracy of positioning
