RS232/485 A WIFI Poe Ethernet Serial Server Converter, Modb …

Description

Price: $42.23
(as of May 07, 2025 09:26:11 UTC – Details)

General description
RS232/485 industrial server to Wifi and Ethernet, Modbus Gateway, MQTT Gateway, with Poe Function. RS232/485 Data Procure

Budget
DESCRIPTION OF THE PRODUCT-MODULE IN INDUSTRIAL RIEL/WALL ASSEMBLY WITH METAL CAS
Power supply-Dc 6 ~ 36v / Puerto Poe
Power supply method: DC 5.5 feed port, screw terminal or port POE

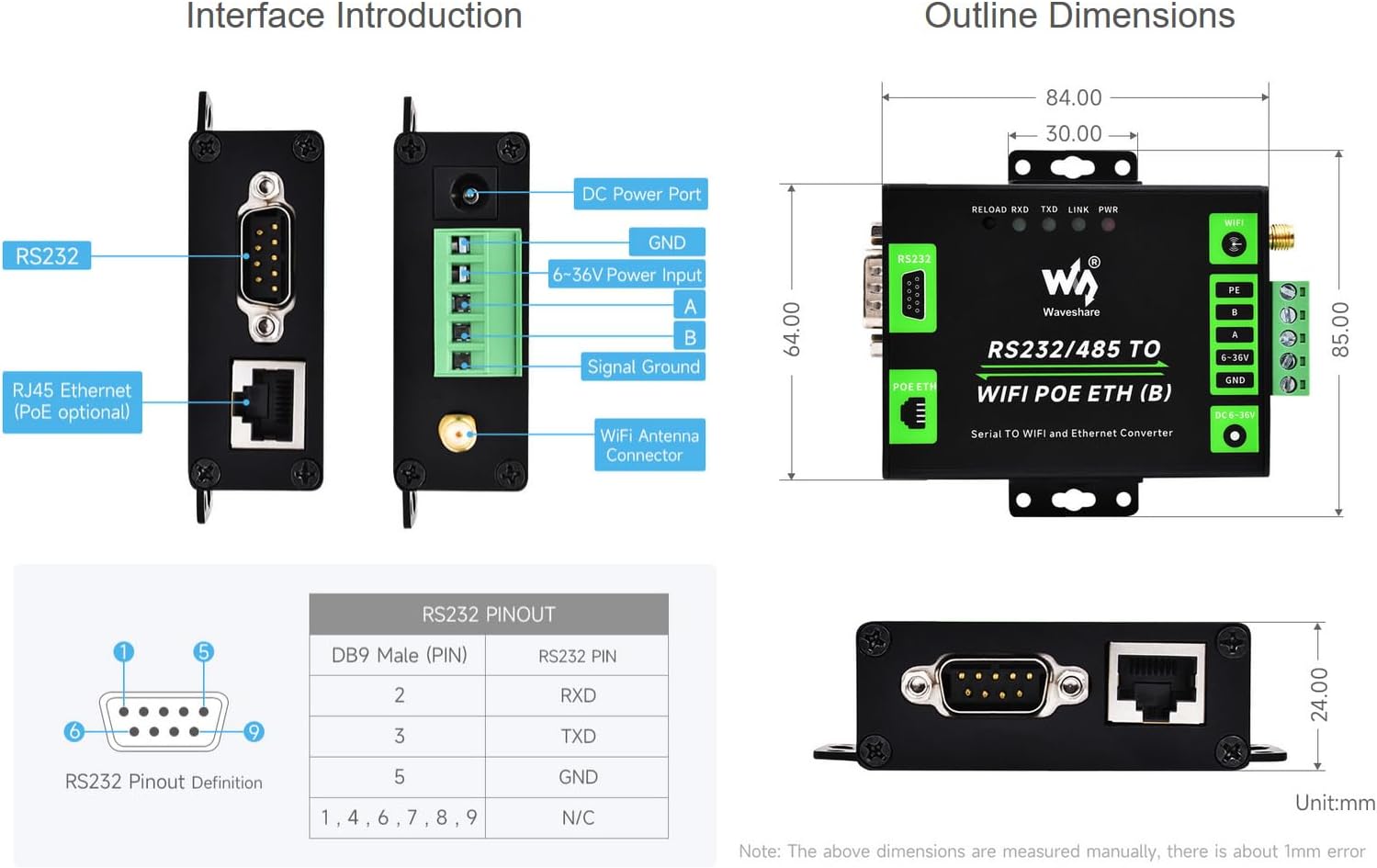

Dimensions (l × w × h) -84.00 × 64.00 × 24.00 mm

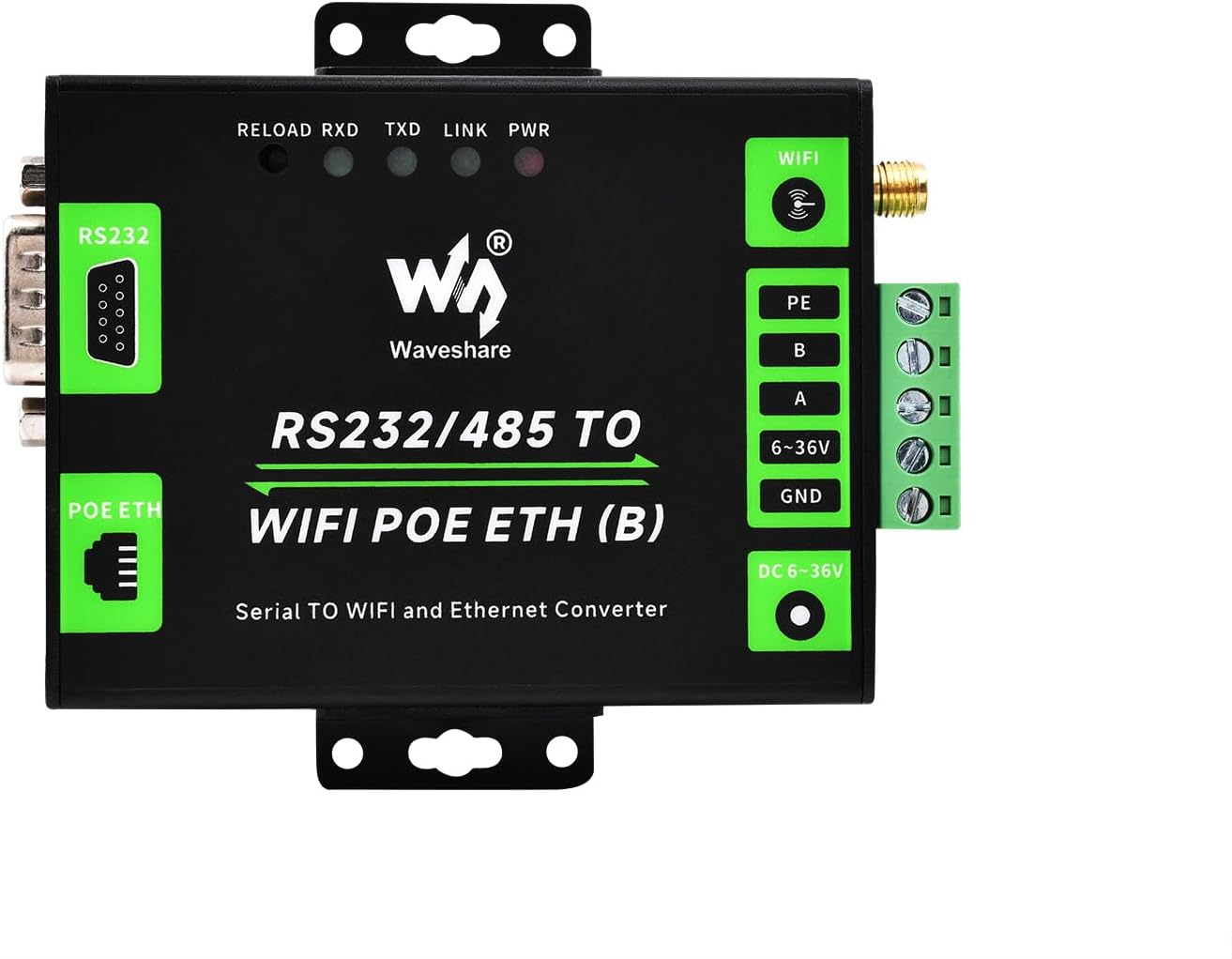

Communication
Ethernet-10 / 100m RJ45 RJ45 connector
WIFI-802.11b/g/n meets
Serial port
–RS232 (ESD/EFT)
–RS485 (ESD/EFT/OVERTEENSION PROTECTION)
Wireless specification
Frequency Band-2.412 ~ 2,484 GHz
Wireless Network-Station / AP / AP+Station mode
Security Mechanism-PSK / WPA2-PSK
Type of encryption-tkip / aes
Transmission power
–802.11b: +19dbm (max.@11Mbps)
–802.11g: +18DBM (max.@54mbps)
–802.11N: +17DBM (max.@Ht20, MCS7); +17DBM (max.@Ht40, mcs7)
Receive sensitivity
–802.11b: -89dbm (@11Mbps)
–802.11g: -81DBM (@54mbps)
–802.11N: -73DBM (@ht20, MCS7); -71DBM (@ht40, MCS7)
Series specification
BAUDRATE-300 ~ 460800 BPS
Bit-none parity, odd, par, mark, space
Data bit-5 ~ 9 bits
Software
Protocol-TCP / UDP / ARP / ICMP / DHCP / DNS / HTTP / MQTT
Configuration-Host, web browser, AT Series of Command
Communication Method: Direct communication of TCP/IP, VCOM
Operating mode: transparent transmission, serial command, HTTPD client, modbus TCP to Modbus rtu
Environment requirement
Operating temperature–40 ℃ ~ 85 ℃
Humidity range: 5% ~ 95% relative humidity

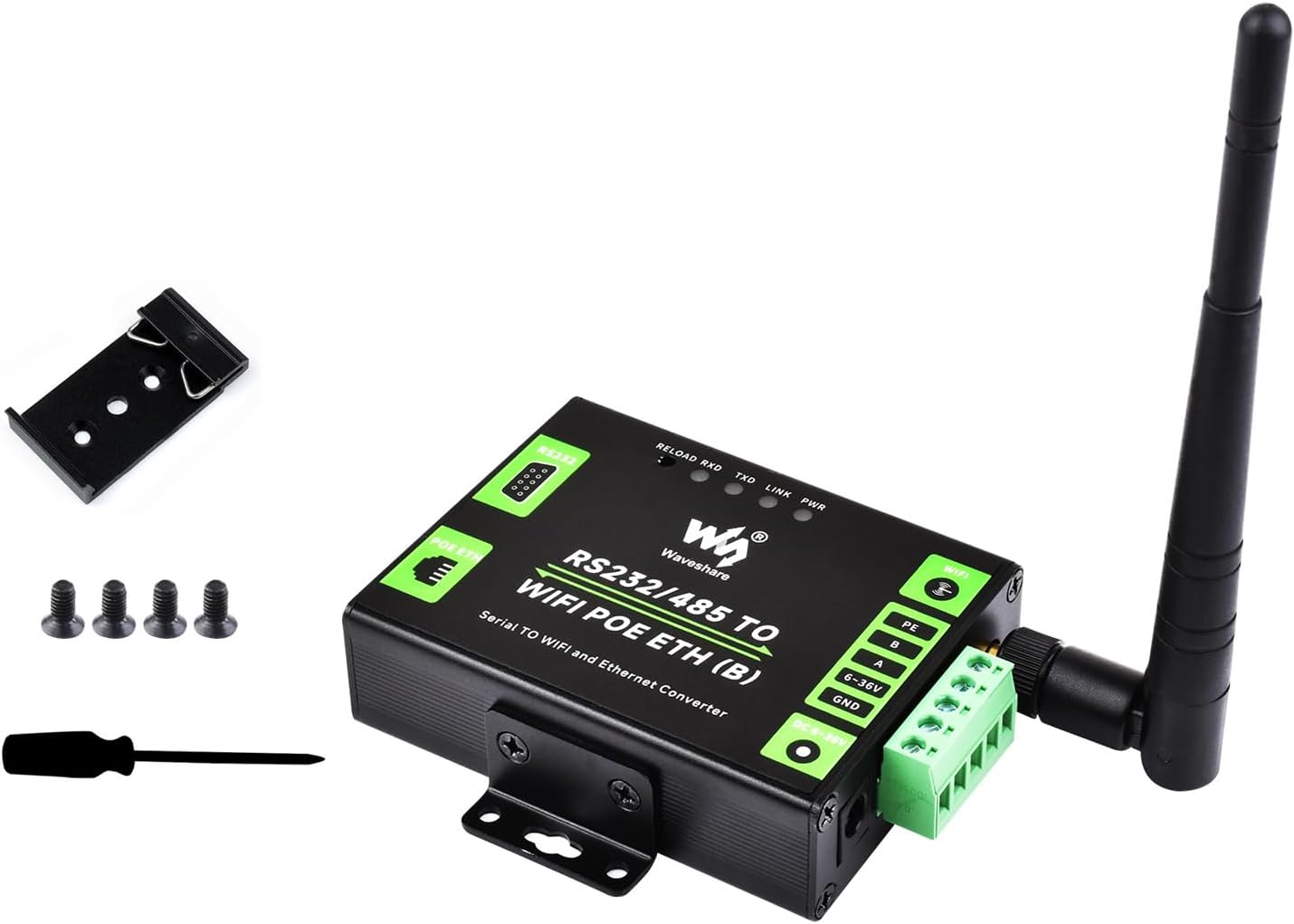

Package content
RS232/485 A WIFI POE ET (B) X1
2.4G Wi -Fi Antenna X1
X1 rail assembly buckle
Costrilr x1
X1 screw package

Note: Online development resources and technical support are provided, do not hesitate to contact us if you have any problem!

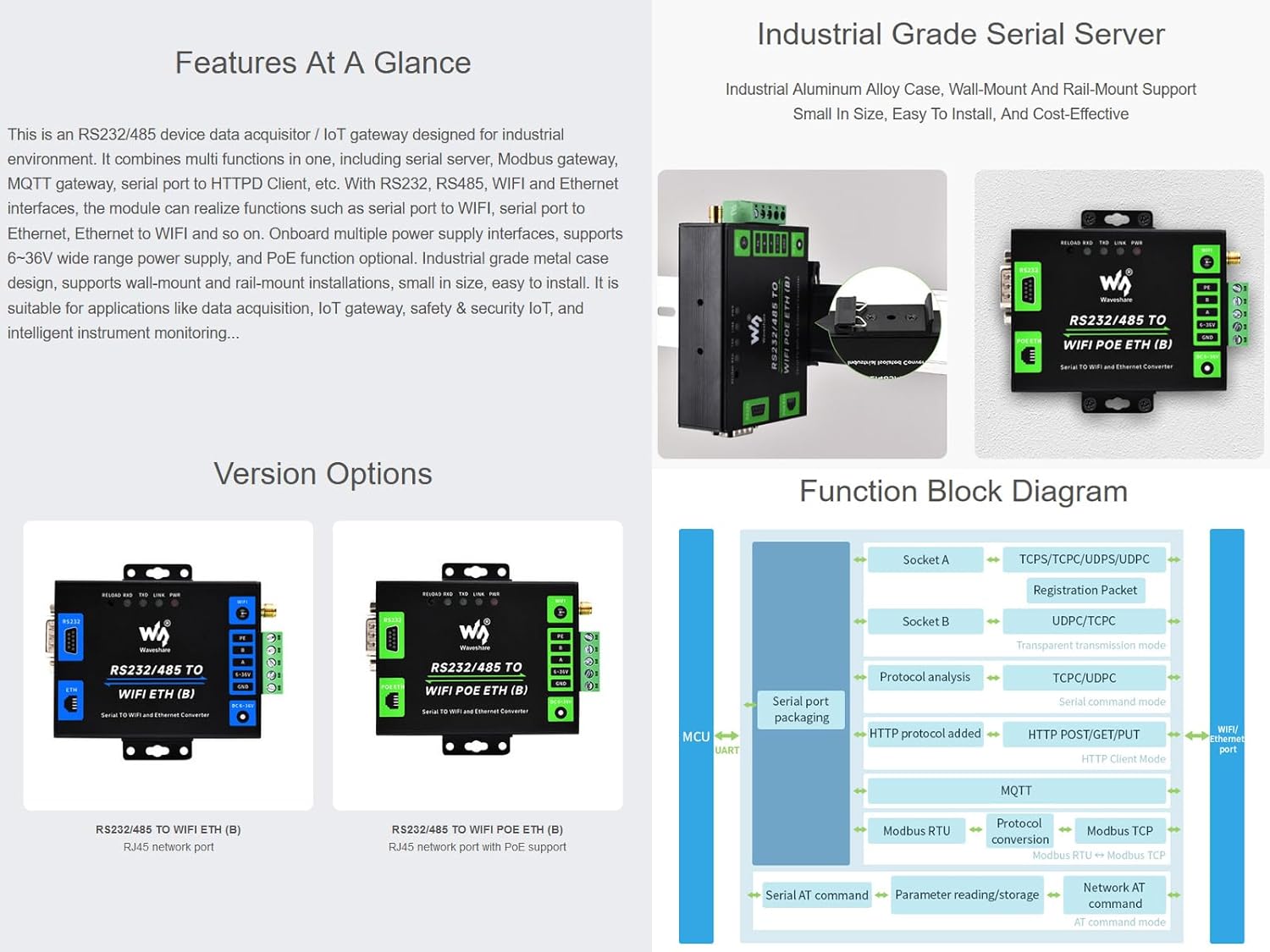

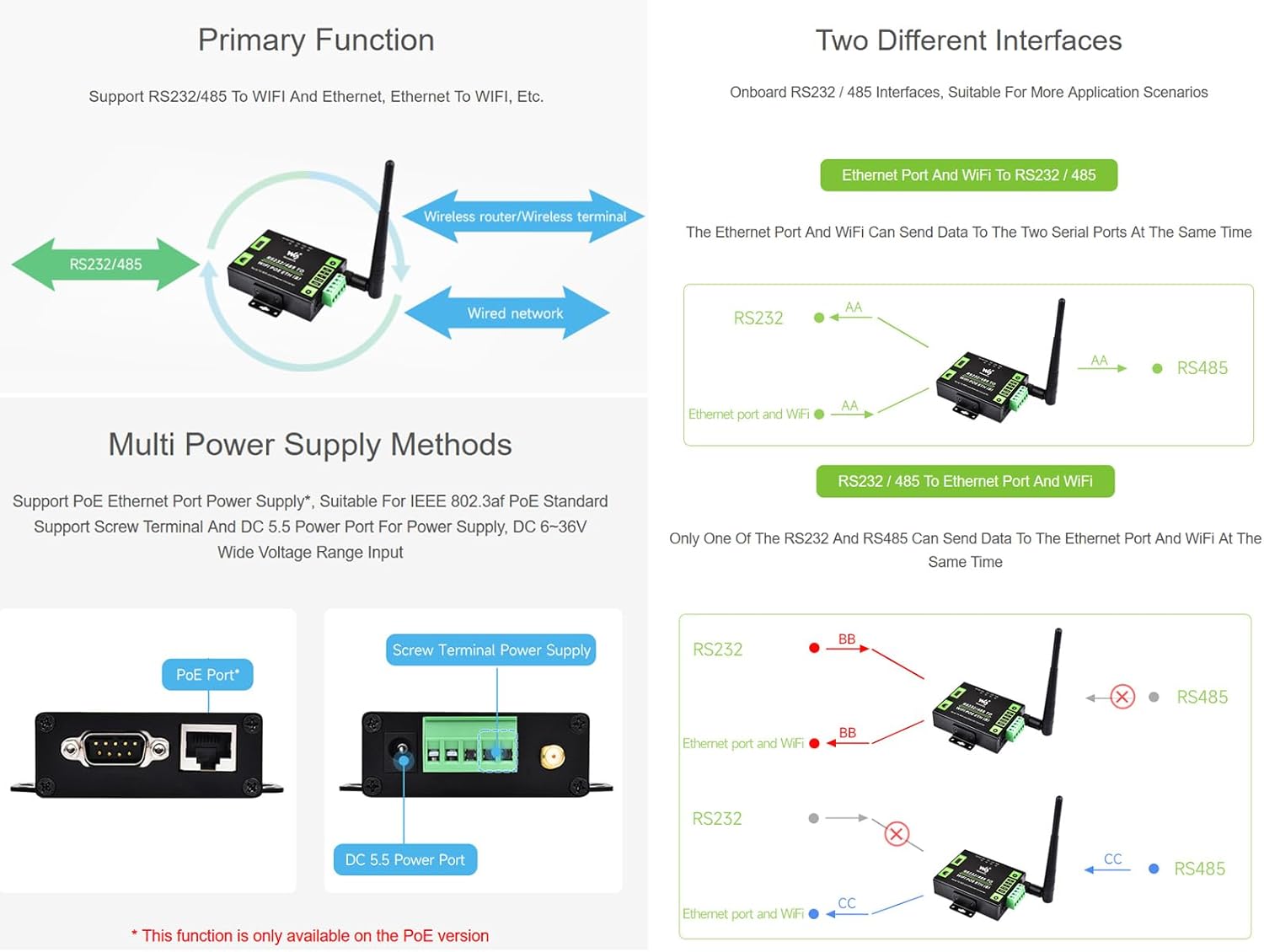

★ RS232/485 Serial A WiFi Poe Ethernet Converter Combina Serial Serial Series, Modbus Gateway, MQTT Gateway, HTTPD customer serial port, etc. Multi functions

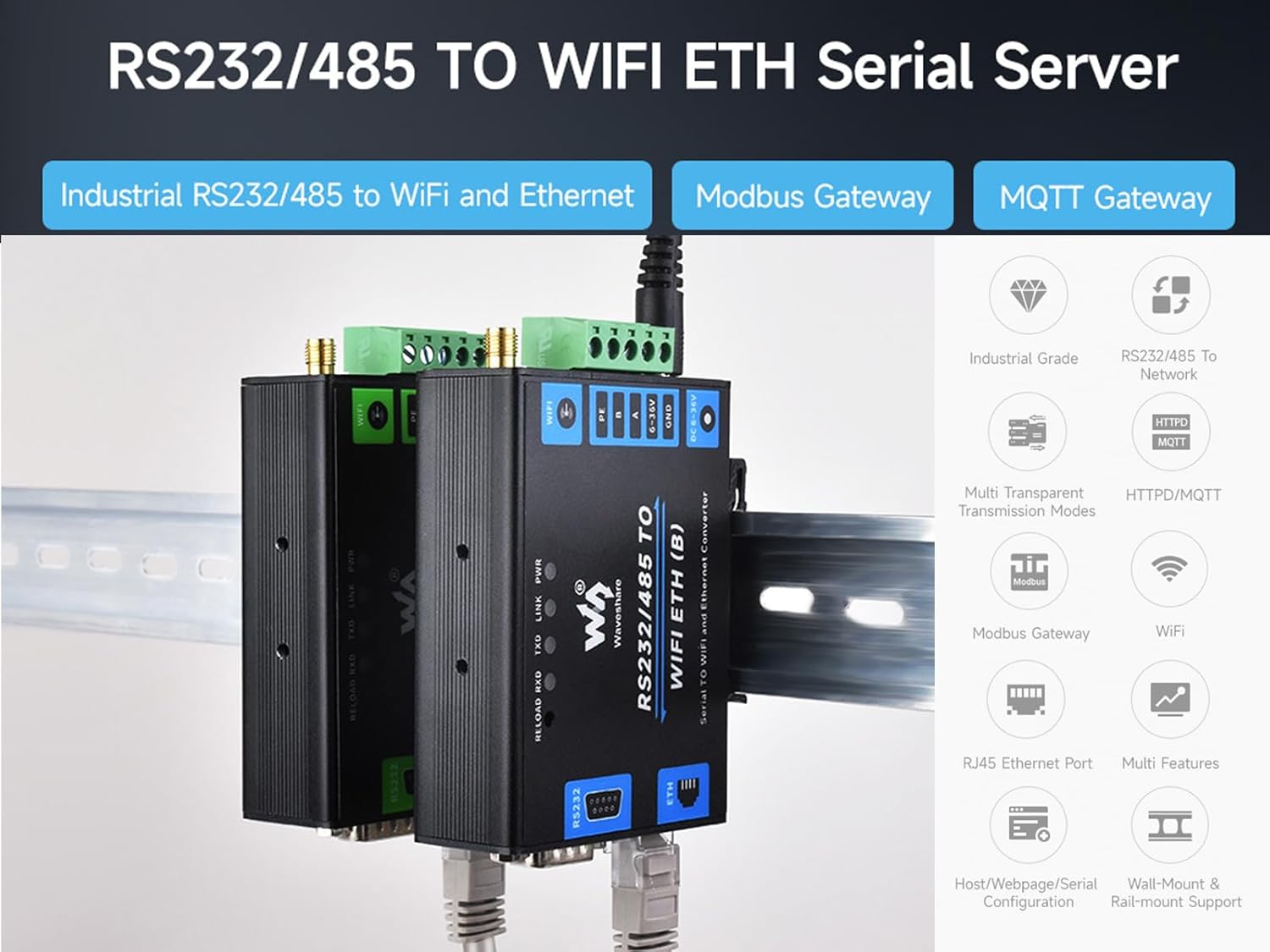

★ RS232/485 A WiFi Poe Eth Serial Device Server Support Poe Ethernet Port Sedying, suitable for IEEE 802.3AF POE standard, Support Screw terminal DC 5.5 Food port for supply supply, width voltage range input DC 6 ~ 36V. Industrial aluminum alloy case, wall assembly and railway assembly support
★ Industrial Degree Series RS232/485 A WIFI and Ethernet Admit TCP Server, TCP Client, UDP Server, Transparent Transparent Mode of the customer UDP

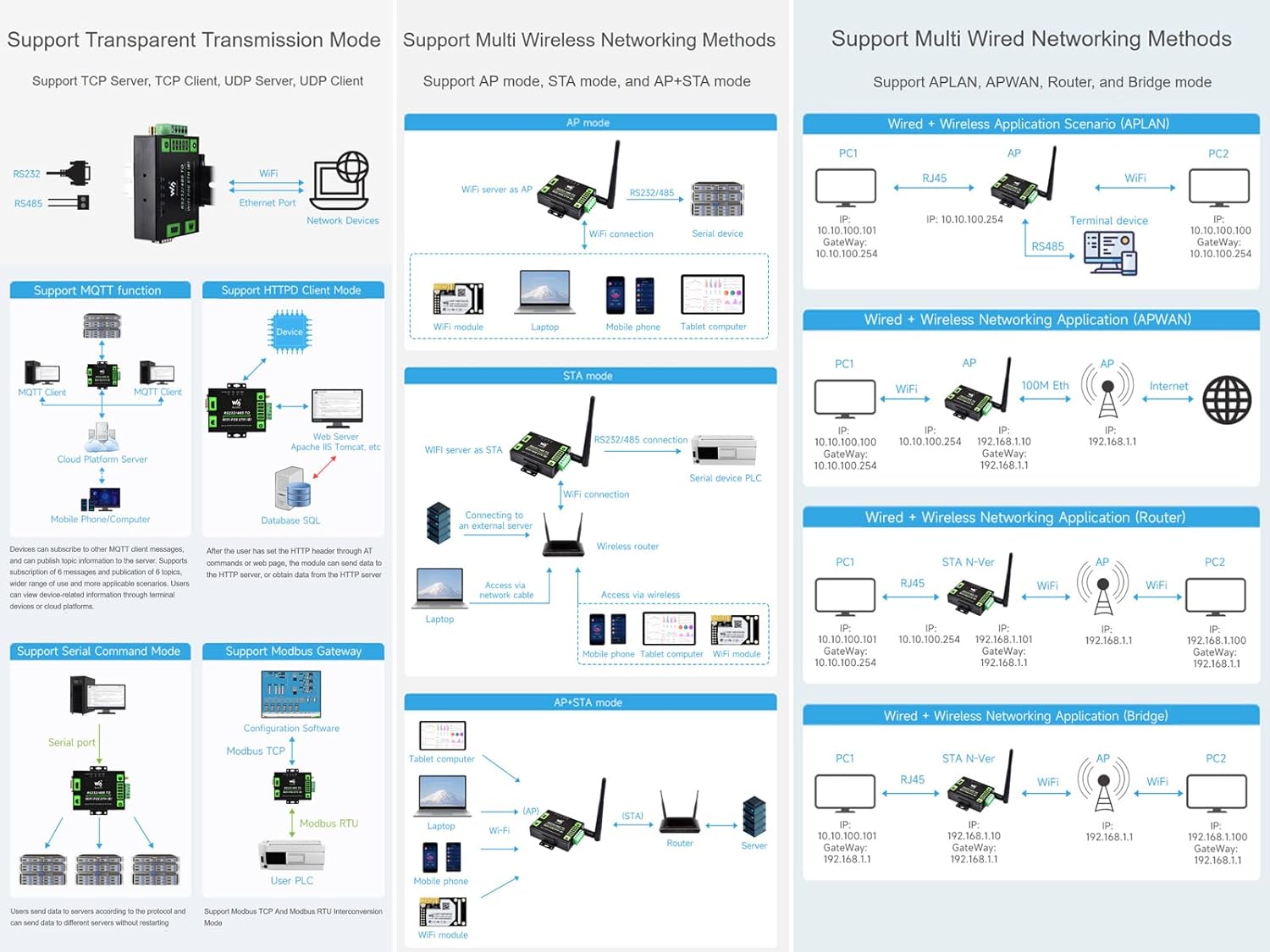

★ AP mode support, STA mode and multiple network methods in wireless AP+STA, support of Apatan, Apwan, Rount and Puente Mode

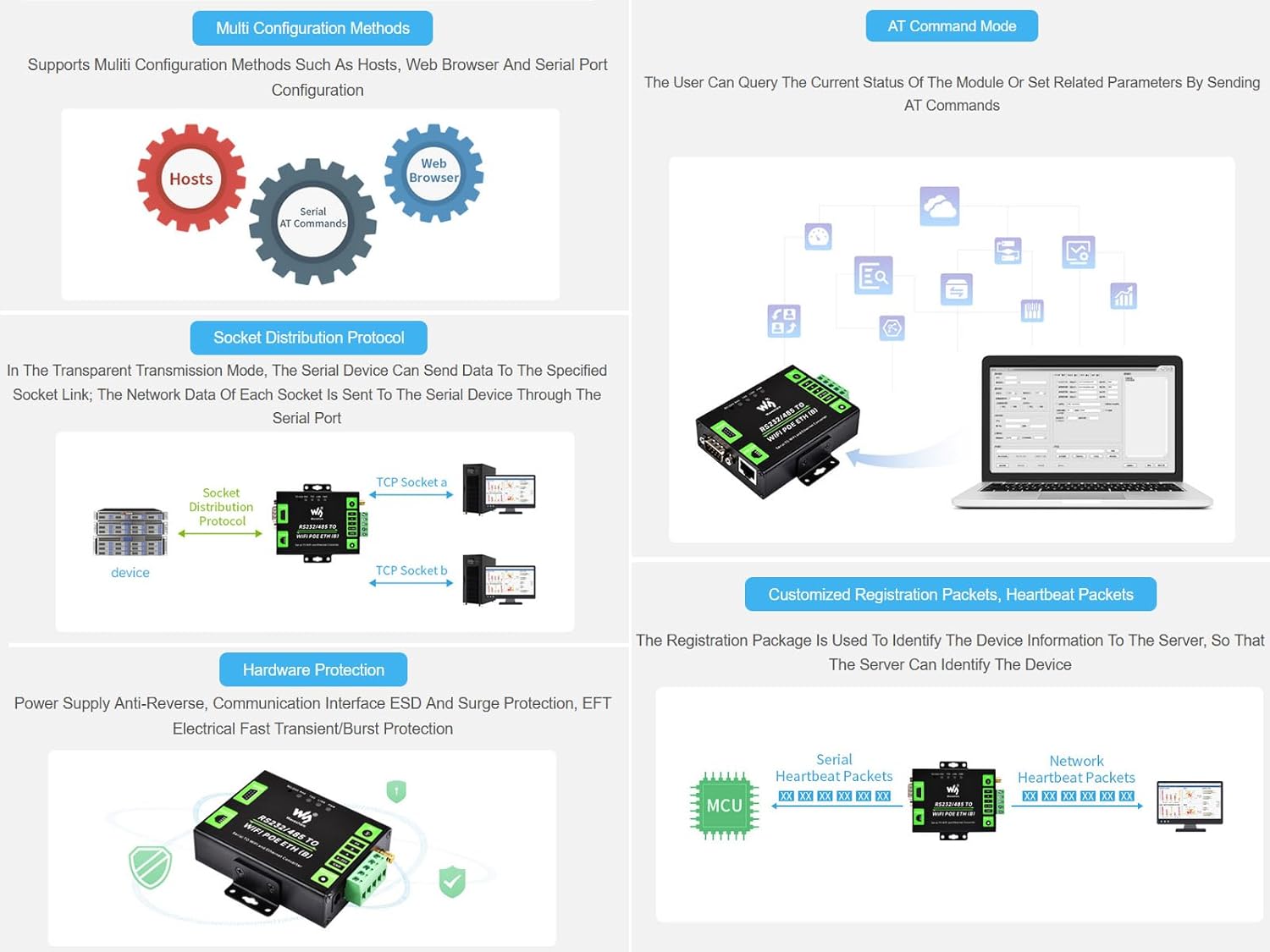

★ Featues Multiple configuration methods, in command mode, socket distribution protocol, hardware protection, personalized registration packages, heartbeat packages
