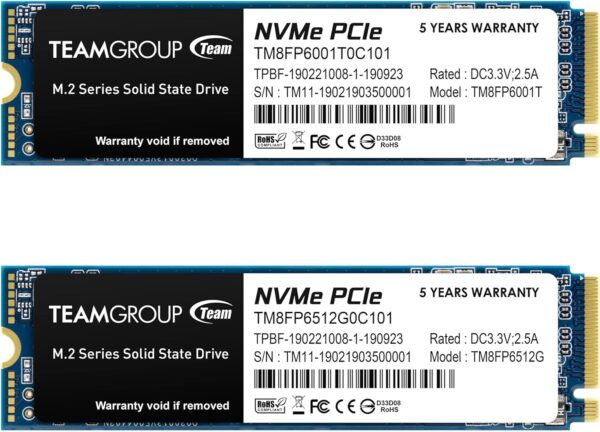

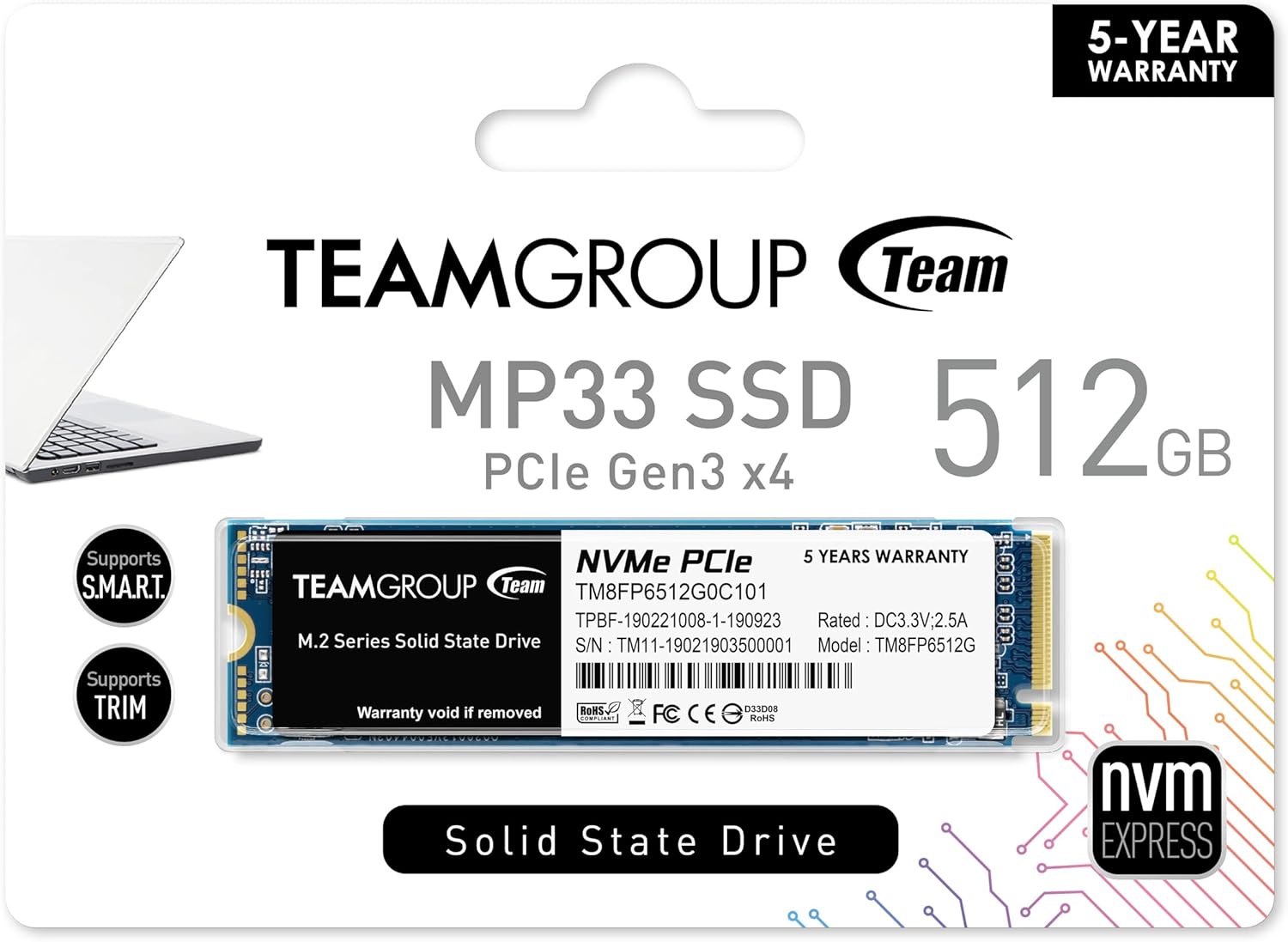

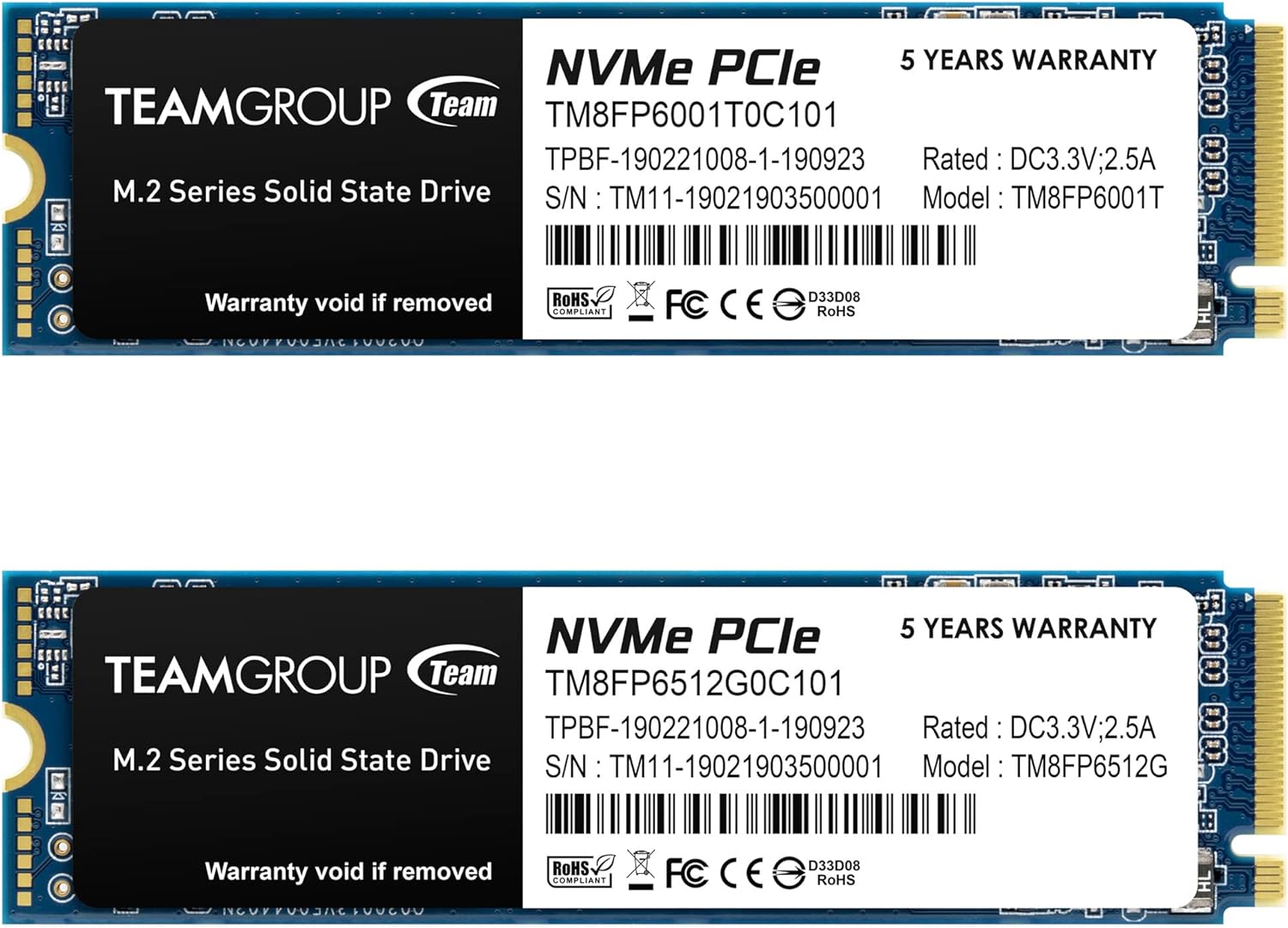

TEAMGroup MP33 512GB 2 PACK SLC CACHE 3D NAND TLC NVME 1.3 P …

Price: $58.99
(as of Feb 02, 2025 14:13:14 UTC – Details)

Of the brand

TLC Flash SSDS equipment group

MP44L ＊ MP34 ＊ MP33 PRO ＊ MP44S

• Support for labor efficiency of improvement of the SLC cache drastically.

• Diversified optimization technology for stability, durability and improved reliability.

• Support for the latest NVME 1.4 / 1.3 standards.

• Smart monitoring software.

• Reliable and reliable service

NVME PCIE SSDS team group

M.2 SSD installation instructions

1. First, turn off the computer and unplug the power cable

2. Find the M.2 SSD slot on the motherboard

Since each motherboard is designed differently, see the user manual of the motherboard for an exact location

M.2 SSD installation instructions

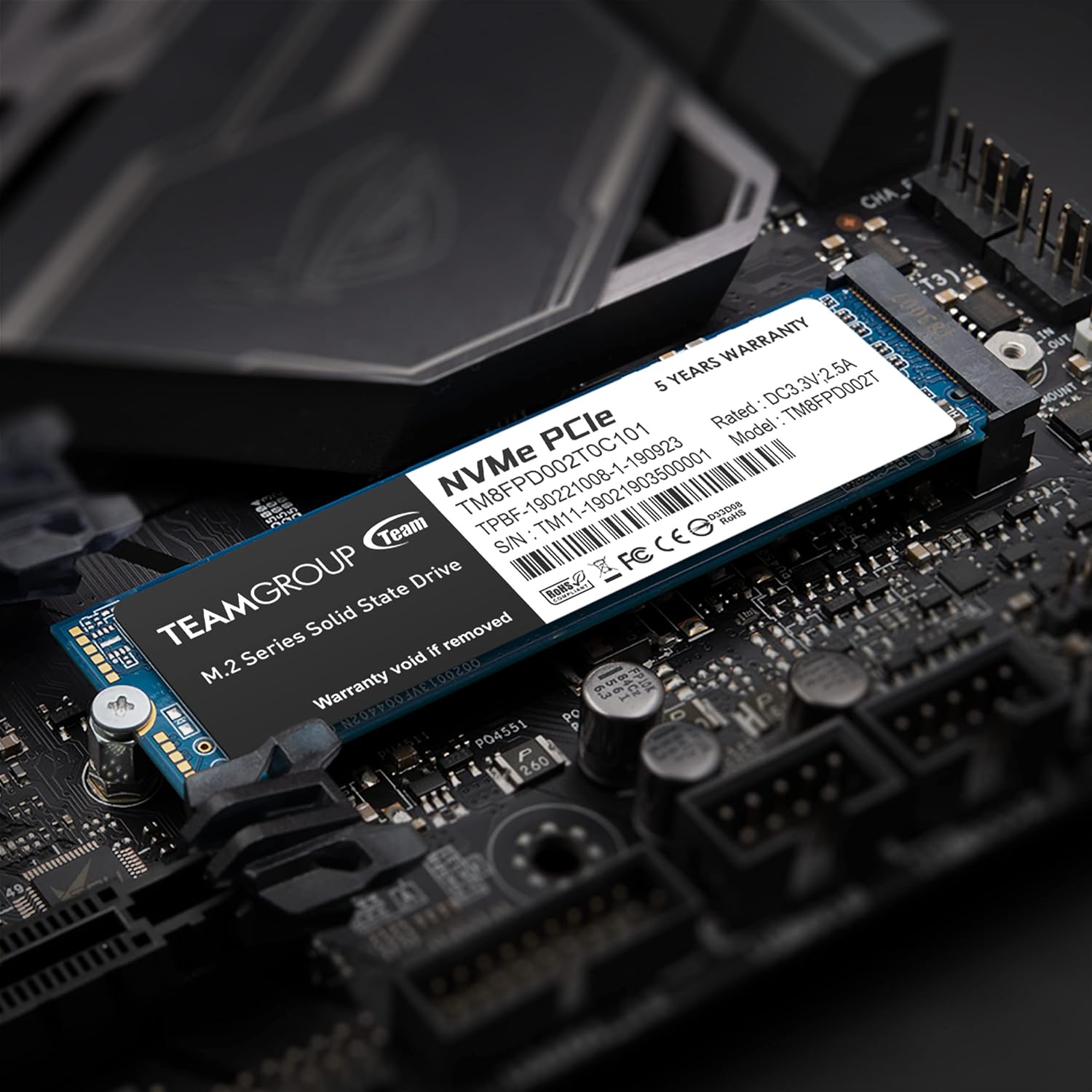

3. Insert the M.2 SSD

Due to the differences in the motherboards, before installing the M.2 SSD product, remove the heat spreader or the screws on the motherboard *(note 1) and make sure that the SSD m.2 coincides with the interface of The slot

Remove all screws from the SSD M.2 slot and make sure there is no other interference

When installing the SSD, hold the left and right sides of the product SSD M.2 and align the product connector with the slot notch, then insert in the M.2 slot at an angle of 20 degrees and screw Mounting on the motherboard

M.2 SSD installation instructions

4. Complete the assembly and start the computer

Before starting, verify that there are no strange screws, pieces or objects that fall on the motherboard

Precautions:

*Avoid direct contact with PCB parts during installation to avoid damage caused by static electricity

*When screwing, be careful to avoid colliding with the IC parts on the motherboard and making them fall

NVME PCIE GEN3X4 High speed interface: Sequential reading/writing speed can reach up to 1700/1400 MB/s that reduce operating system delays and game/software.
Ultra High Performance: The transfer performance is 5 times greater than the SATA III interface. Able to read and write large amounts of games of complex games, graphics and movement processing algorithms, or load video editing software/heavy -duty graphics.
M.2 2280 Specification: Admits the next generation and AMD platforms. Suitable for desktop and notebook.
Admits storage technology in SLC cache. It greatly improves computer performance.
Guarantee: 5 years or TBW (written terabytes) Limited guarantee. Free technical support and customer service on the official website of the team group.
