Tripp Lite 16-Port HDMI USB KVM Switch with Audio and USB S…

Description

Price: $882.55
(as of Sep 04, 2024 12:43:06 UTC – Details)

Connect 16 HDMI-enabled devices to a single HDMI monitor, keyboard, and mouse

This rackmount KVM switch lets you access, control, boot, and reboot up to 16 computers or other devices with HDMI ports at the same time. In addition to desktop and laptop computers, the switch also connects up to 16 media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes and DVRs, and other HDMI-enabled devices. All 16 computers share one HDMI monitor, USB keyboard, and USB mouse, saving space on your desk or work area.

Connect up to 256 computers to one original console

You can also cascade up to three levels of B024-HU16 KVM switches, allowing centralized access to up to 256 computers using a single monitor, keyboard and mouse.

Switching between computers is quick and easy

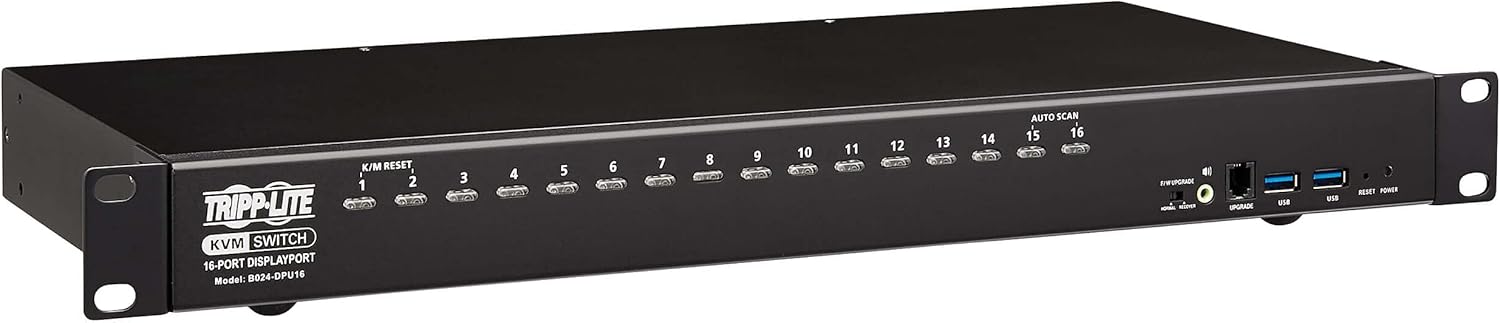

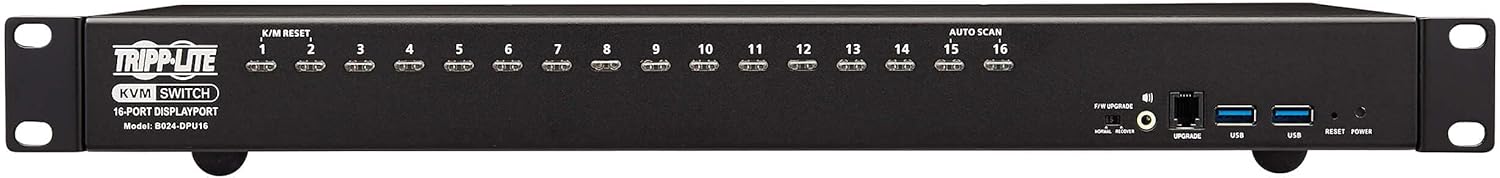

Use the front panel buttons, hotkey commands, or the multilingual on-screen display (OSD) with text-based interface to switch between devices quickly and easily. Or, you can use the auto-scan mode to automatically scan all connected devices at five-second intervals. Orange LEDs indicate which device is currently selected.

Cables are included for quick and easy setup

Connect your HDMI monitor, keyboard, mouse, and speakers to the switch’s console ports. Then, use the included HDMI and USB cables to connect your computers to the KVM switch. The plug-and-play B024-HU16 requires no drivers, so you can plug it in and use it right out of the box. It works with all major operating systems, including Windows, Mac, and Linux.

The USB hub allows you to share peripherals between computers

The built-in two-port USB 2.0 hub lets you share USB peripherals, such as printers, hard drives, scanners, webcams, and flash drives, among all connected computers. Because the USB ports operate independently, you can print documents from one computer while working on another. The hub is backward compatible with USB 1.1 devices. Green LEDs indicate which computer is using the connected USB device.

Transmits 1080p video and digital audio with crystal clarity

The B024-HU16 supports high-definition video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz, 2.1 channel surround sound audio, and USB 2.0 data transfer rates up to 480 Mbps. With independent audio switching, you can listen to music or other audio from one computer while working on a different computer. The front-panel audio connectors take priority over the rear-panel connectors.

Stackable units to expand your workstation and improve your productivity

Stack up to eight B024-HU16 KVM switches to take advantage of multi-display mode. Depending on the number of stages in your stack, your installation can offer two-display, three-display, four-display, or multiple-display scenarios—up to eight stages.

Designed for convenient mounting with included hardware

The rugged metal enclosure includes mounting hardware for 1U installation in an EIA-compliant 19-inch rack. It also allows for desktop installation on included rubber feet that help prevent the unit from sliding. The included power supply connects to any standard AC power source.

TAA compliant for GSA scheduled purchases

The B024-HU16 is Federal Trade Agreements Act (TAA) compliant, making it eligible for GSA Schedule and other federal procurement contracts.
CONTROL UP TO 16 DEVICES: This KVM switch allows the user to control up to 16 HDMI laptops or notebooks using a centralized HDMI monitor and USB keyboard/mouse. The switch can connect up to 16 media centers, gaming systems, Blu-ray and DVD players, cable and satellite boxes and DVRs, and other HDMI devices.
EASY SWITCHING: Use the front panel buttons, hotkey commands, or the multilingual on-screen display (OSD) with text-based interface to switch between computers quickly and easily. This KVM requires no drivers, so you can plug it in and use it right away. It works with all major operating systems including Windows, Mac, and Linux.
USB HUB: The built-in, independently operated two-port USB 2.0 hub lets you share USB peripherals, such as printers, hard drives, scanners, webcams, and flash drives, among all connected computers. The hub is backward compatible with USB 1.1 devices. Green LEDs indicate which computer is using the connected USB device.
HD VIDEO AND DIGITAL AUDIO: This HDMI and USB KVM switch features high-definition video resolutions up to 1920 x 1200 (including 1080p) at 60Hz, 2.1 channel surround sound audio, and USB 2.0 data transfer speeds of up to 480Mbps.
