Waveshare 1D/2D barcode scanner module Bars code barcodes, QR Cod …

Description

Price: $42.23
(as of May 15, 2025 12:50:44 UTC – Details)

General description

This is a small 1D/2D code reader, when using the intelligent image recognition algorithm, will decode the bar code or the 2D code on paper or screen, fast and precisely.

Through the USB and UART interface on board, it can be connected directly to a computer or easily integrate to types of devices due to its small form factor.

Characteristics

Easy to use, does not require knowledge recognition knowledge
Decodes several common 1D/2D codes such as barcode, QR code, etc.
Micro USB and UART serial port on board, allows you to connect with computers or integrated devices
Configurable through the scan 'configuration code'
Light source on board, works in the dark

Budget

Operating voltage: 5V
Operating current: 135ma (scan), 58 m (waiting), 2 ma (dream)
Operating temperature: 0 ° C ~ 60 ° C
Operational humidity: 5% ~ 95% (no condensation)
Communication interface: UART, USB
Decodes 1D Codes: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interlavated 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar (RSS)
You decode 2D codes: QR code, data matrix, PDF417
Light Source: White
Scan angels: 360 ° roll, bias ± 65 °, tone ± 60 °
Field of vision: 28 ° (horizontal), 21.5 ° (vertical)
Dimension: 53.3 mm x 21.4 mm

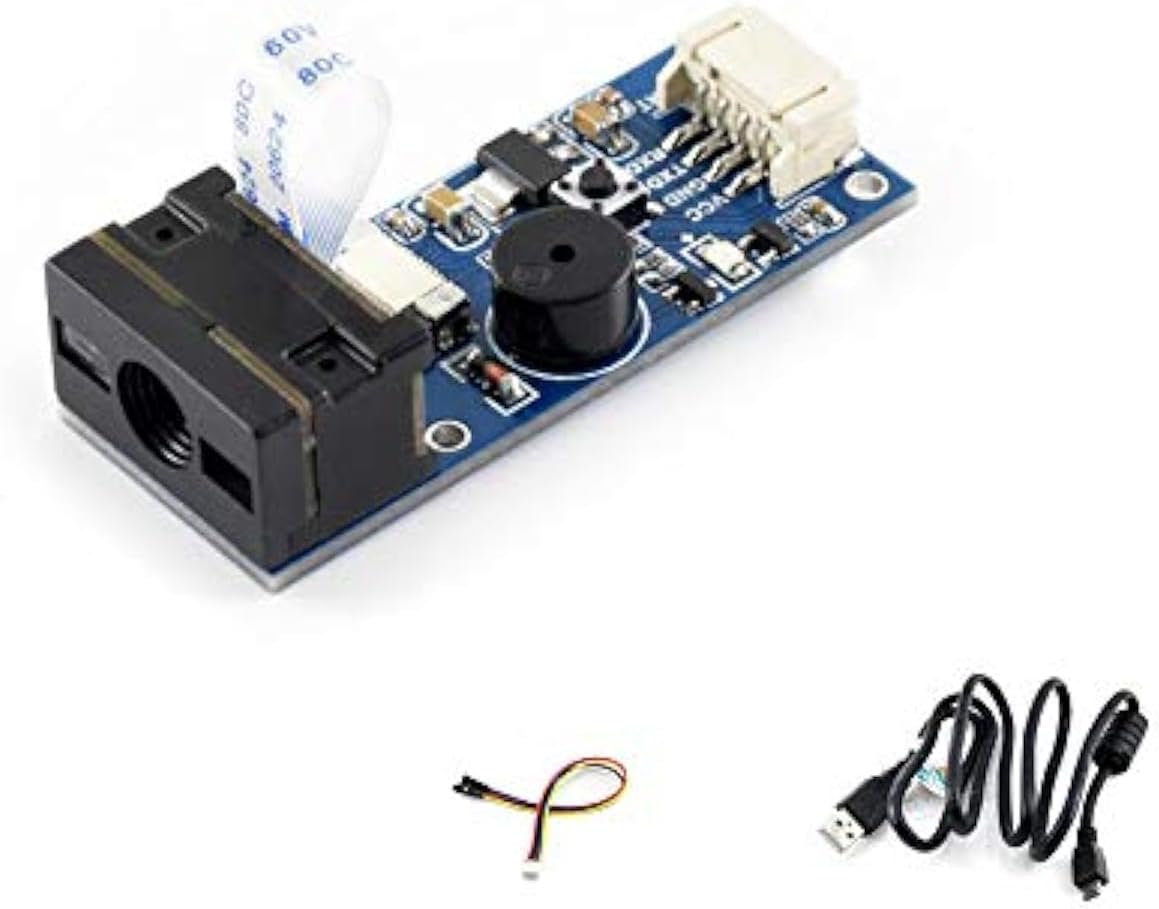

Package content

1. Bars code scanner module X1
2. USB Type A to the Micro B x1 plug cable
3. PH2.0 4PIN X1
Easy to use, does not require knowledge recognition knowledge
Decodes several common 1D/2D codes such as barcode, QR code, etc.
Micro USB and UART serial port on board, allows you to connect with computers or integrated devices
Configurable through the scan 'Configuration Code', light source on board, it works in the dark
Resource download: www.waveshare.com/wiki/barcode_scanner_module
